HDMI over Fiber Extender

HDMI	-	-	-	-

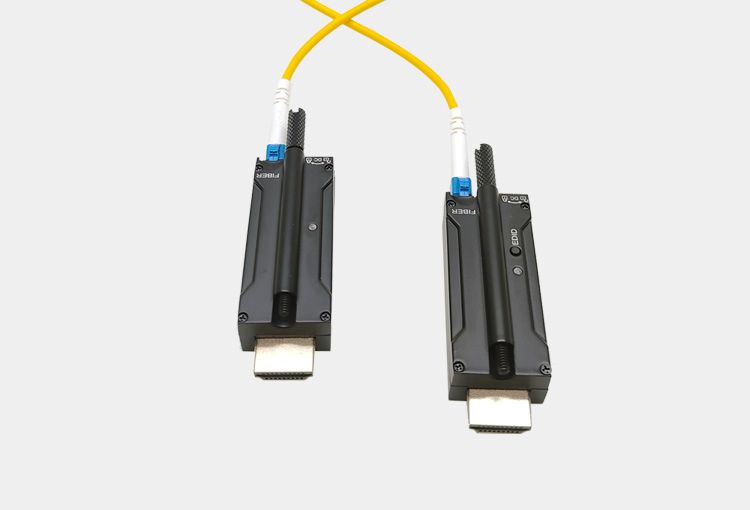

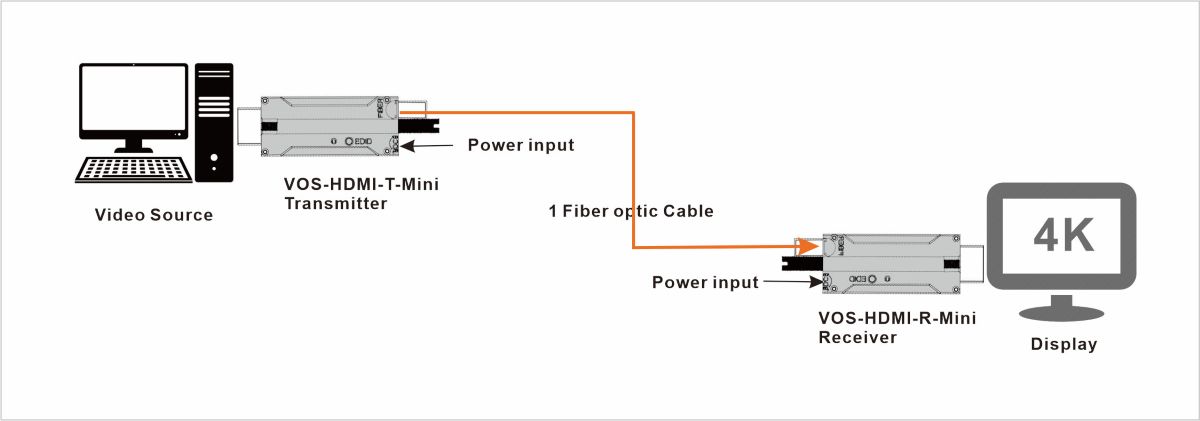

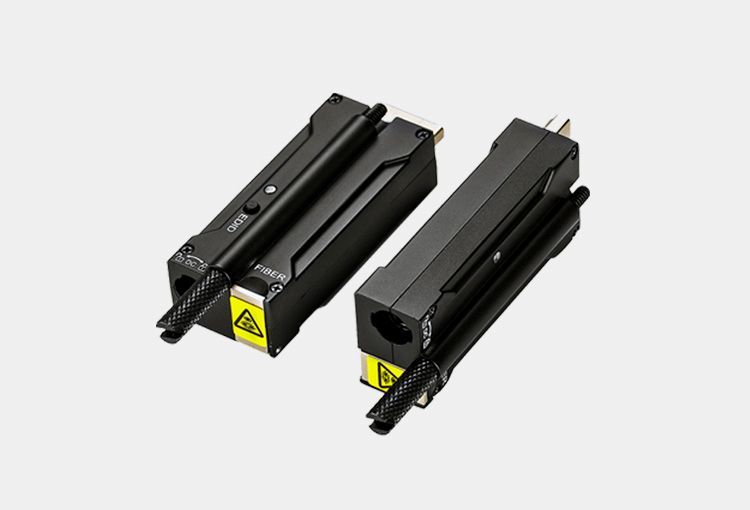

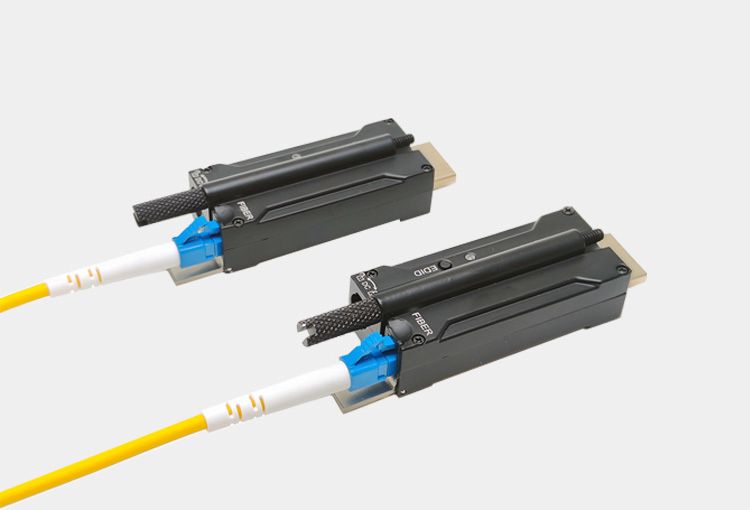

VOSCOM HDMI over Fiber Extender, VOS-HDMI-T/R-Mini can transmit your HDMI signal up to 1km over single-mode fiber, or up to 300 m over multi-mode fiber. requires no adjustments, equalization or de-skewing during installation. plug and play connection between Apple TV 4K, Fire TV Stick 4K, nVidia Shield TV, game console, or other professional video.

The HDMI over Fiber Extender support HDMI 2.0, resolution up to 4K 60Hz (4:2:0), 4K 30Hz (4:4:4), Backward compatible. EDID is managed by maintaining continuous EDID communication with the source, ensuring that it powers up properly and maintains video output. For HDMI signals with protected content, the VOS-HDMI-T/R-Mini continuously authenticates HDCP compliance to support quick and reliable transmission, desinged to solve the installers common problems with long distance HDMI transmission.

• HDMI
HDMI Version:	HDMI 2.0
HDMI Connector:	19 pin HDMI Type A Male
Data Rate:	10.2Gbps
Compliance:	HDCP 2.2
Max Resolution:	4K@60Hz 4096×2160, 3840x2160 (4:2:0),
	4K@30Hz 4096×2160, 3840x2160 (4:4:4 / 4:2:2 / 4:2:0)
	Backward compatible
• Optical
Connector:	LC (SFP)
Fiber Type:	Single-mode 1km or Multi-mode 300m
Tx Output Power:	>-3dB
Receiver Sensitivity:	>-10dB
• Electrical & Mechanical
Input Power Requirements:	DC5V
Power Adapter:	AC100V~240V
Power Connector:	DC 3.5 x1.35mm
Power Consumption:	<1.5W
Stand-Alone Dimensions:	60mm x 22mm x 17mm
Shipping Weight:	0.1kg (include TX & RX)
• Environmental
Operating Temperature:	-10°C ~+65°C
Storage Temperature:	-20°C~+85°C
Relative Humidity:	0%~95% (non-condensing)
MTBF:	>100,000 hours

The models listed here are our most commonly used options.
For other models or customization needs, please contact us directly. We welcome inquiries for customized solutions.

Part Number	Description
VOS-HDMI-T/R-Mini	Mini HDMI over Fiber Extender, 4K@60Hz (4:2:0), HDMI 2.0
VOS-1HDMI-DT/R	1-Channel HDMI + 1 Duplex RS232 Data, 4K@30Hz (4:4:4), HDMI 1.4
VOS-1HDMI-ADT/R	1-Channel HDMI + 1 Duplex Stereo Audio + 1 Duplex Data, 4K@60Hz (4:4:4), HDMI 2.0
VOS-1HDMI-ADUT/R	1-Channel HDMI + 1 Duplex Stereo Audio + 1 Duplex Data + USB for KVM, 4K@60Hz (4:4:4), HDMI 2.0
VOS-DVI-T/R-Mini	Mini DVI over Fiber Extender, 4K@30Hz
VOS-1DVI-DT/R	1-Channel DVI + 1 Duplex RS232 Data, 4K@30Hz
VOS-1VGA-ADT/R	1-Channel VGA + 1 Duplex Stereo Audio + 1 Duplex Data, 1080p
VOS-1VGA-ADUT/R	1-Channel VGA + 1 Duplex Stereo Audio + 1 Duplex Data + USB for KVM, 1080p
