VGA KVM to Fiber Converter

VGA	Audio	RS232	USB	-

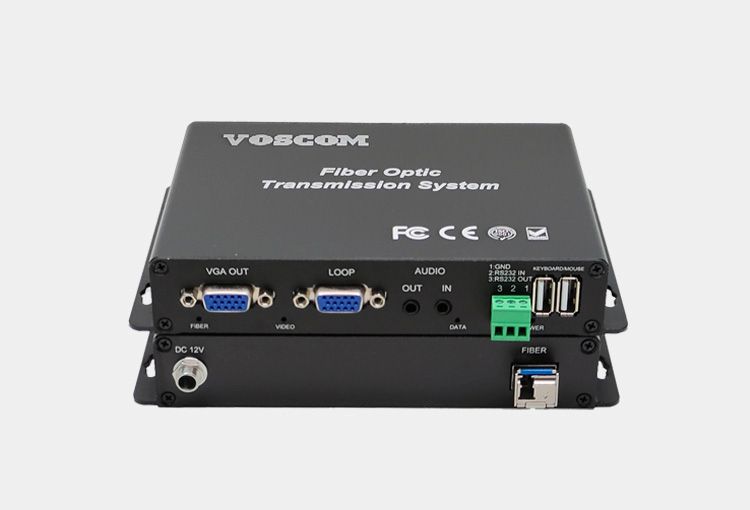

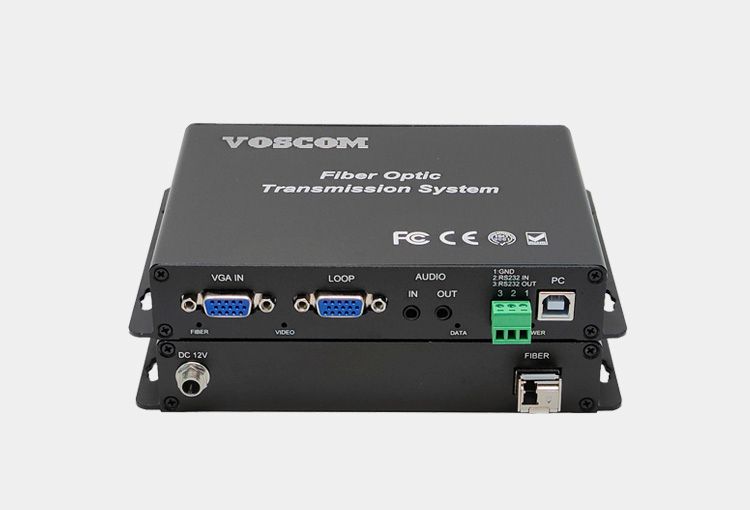

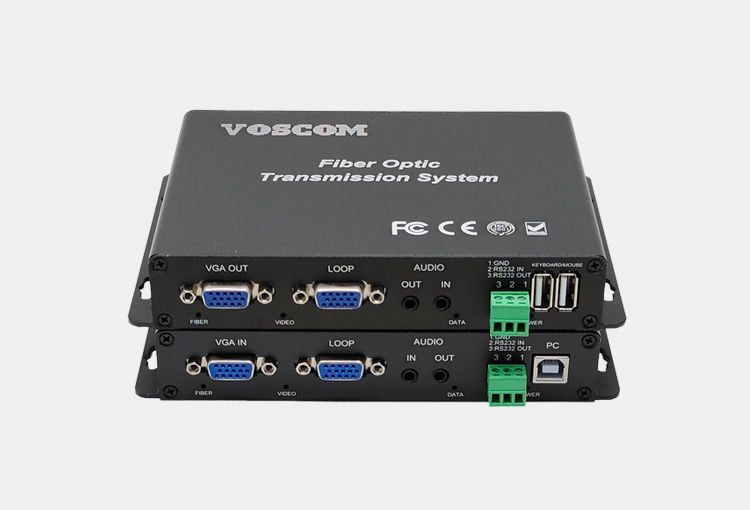

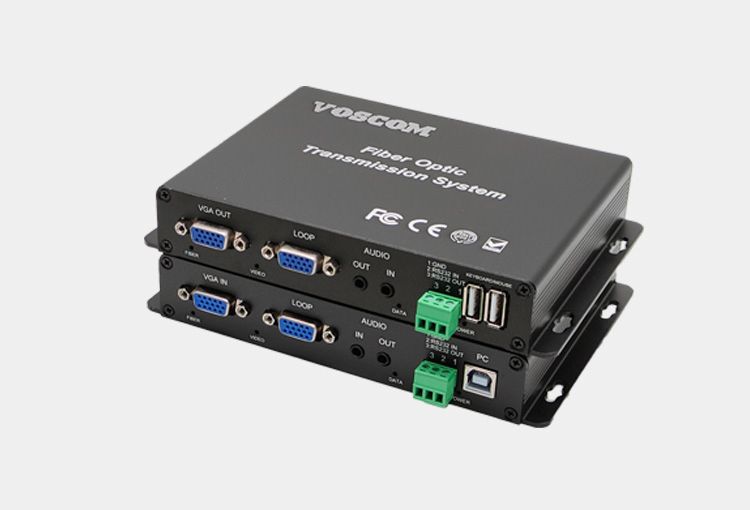

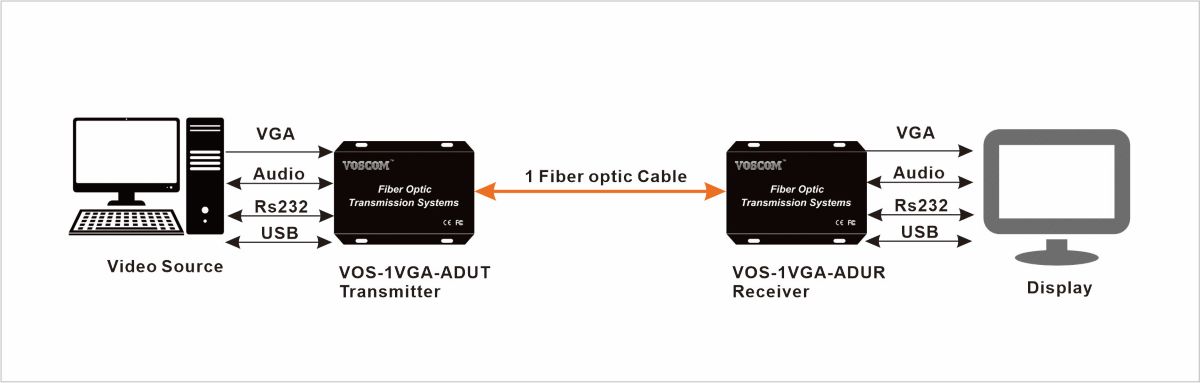

VOSCOM VGA KVM to Fiber Converter, VOS-1VGA-ADUT/R provides 1-Channel uncompressed VGA video, resolutions up to WUXGA 1920x1200 and HDTV RGB Component Video resolutions up to 1080p, support 1 duplex stereo audio, 1 duplex Rs232 data and USB for KVM, also support one VGA loopback output for local display and dual VGA outputs for two displays in the remote end.

Stand-alone or rack-mount. All VGA extenders over Fiber of VOS-1VGA-ADUT/R comes in an insert card version. The cards can be inserted into our 16-slot, 19inch 4U rack-mountable card cage (VOS-CH04).

Single-Mode or Multi-Mode, VOS-1VGA-ADUT/R only can support LC optical connector, support Single-mode 10km or Multi-mode 300m over one single-fiber.

• VGA
Number of Channels:	1-Channel VGA
Connector:	VGA HD-15, female
Max Resolution:	1920 x 1200 (WUXGA)
	1080p@60Hz
	Backward compatible
• Audio
Number of Channels:	1-Ch Duplex Stereo Audio
Connector:	3.5mm TRS Jack
Audio input/output Level:	+4dBu nominal
Audio Type:	Unbalanced, Line Level
Audio in/output impedance:	600Ω
Frequency Response:	20Hz ~ 20KHz
Sample Rate:	48KHz, 24K bit rate
Signal-to-Noise Ratio(SNR):	96dB
Distortion:	<0.05%
• Data
Number of Channels:	1-Ch Duplex Rs232 Data
Connector:	3-pin Terminal Block
Data Formats:	Rs232 Data
Data Rate:	DC to 115.2Kbps
Bit Error Rate:	< 10E-9
• USB
USB Version:	USB 1.1
USB Connector:	Type B x 1 (Transmitter)
	Type A x 2 (Receiver)
• Optical
Connector:	LC (SFP)
Fiber Type:	Single-mode 10km or Multi-mode 300m
Tx Output Power:	>-3dB
Receiver Sensitivity:	>-10dB
• Electrical & Mechanical
Input Power Requirements:	DC12V1A
Power Adapter:	AC100V~240V
Power Connector:	DC Power Connector
Power Consumption:	<3W
Stand-Alone Dimensions:	167mm x 114mm x 28mm
Shipping Weight:	1.2kg (include TX & RX)
• Environmental
Operating Temperature:	-20°C ~+70°C
Storage Temperature:	-40°C~+85°C
Relative Humidity:	0%~95% (non-condensing)
MTBF:	>100,000 hours

The models listed here are our most commonly used options.
For other models or customization needs, please contact us directly. We welcome inquiries for customized solutions.

Part Number	Description
VOS-HDMI-T/R-Mini	Mini HDMI over Fiber Extender, 4K@60Hz (4:2:0), HDMI 2.0
VOS-1HDMI-DT/R	1-Channel HDMI + 1 Duplex RS232 Data, 4K@30Hz (4:4:4), HDMI 1.4
VOS-1HDMI-ADT/R	1-Channel HDMI + 1 Duplex Stereo Audio + 1 Duplex Data, 4K@60Hz (4:4:4), HDMI 2.0
VOS-1HDMI-ADUT/R	1-Channel HDMI + 1 Duplex Stereo Audio + 1 Duplex Data + USB for KVM, 4K@60Hz (4:4:4), HDMI 2.0
VOS-DVI-T/R-Mini	Mini DVI over Fiber Extender, 4K@30Hz
VOS-1DVI-DT/R	1-Channel DVI + 1 Duplex RS232 Data, 4K@30Hz
VOS-1VGA-ADT/R	1-Channel VGA + 1 Duplex Stereo Audio + 1 Duplex Data, 1080p
VOS-1VGA-ADUT/R	1-Channel VGA + 1 Duplex Stereo Audio + 1 Duplex Data + USB for KVM, 1080p
