HDMI KVM Fiber Optic Extender

HDMI	Audio	RS232	USB	-

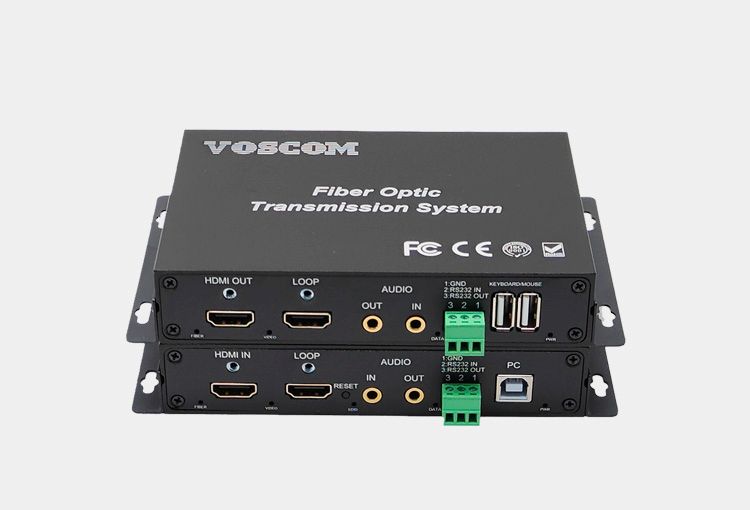

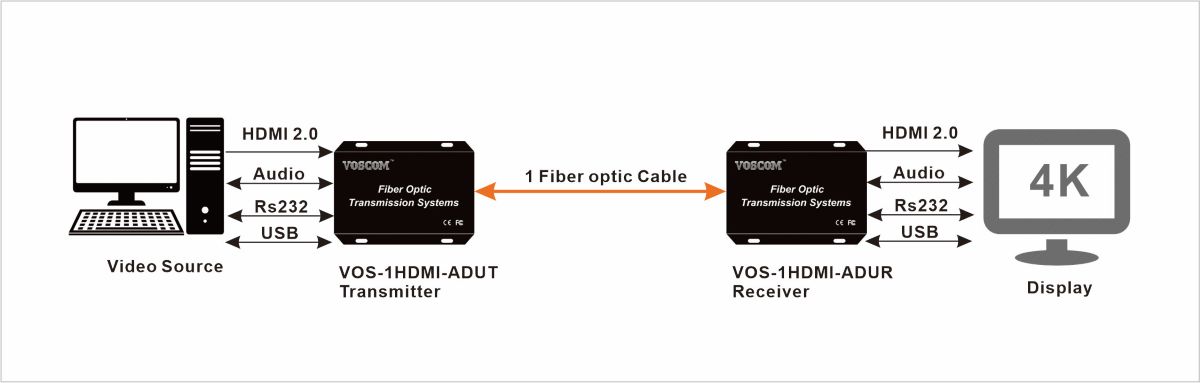

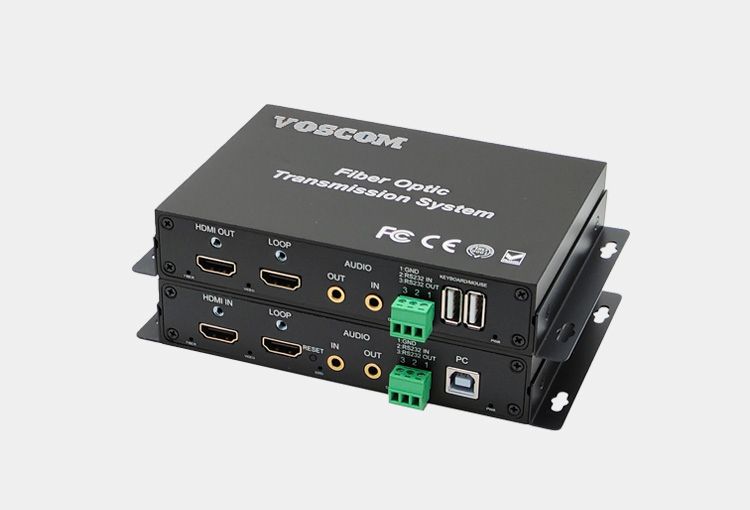

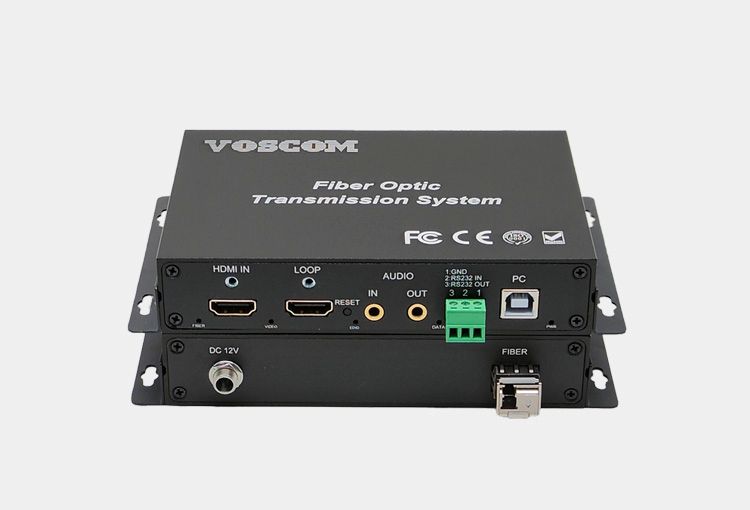

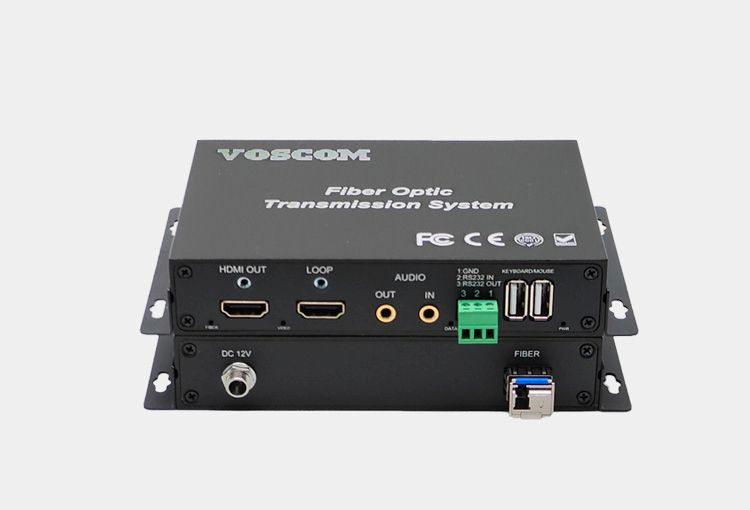

VOSCOM HDMI KVM Fiber Optic Extender, VOS-1HDMI-ADUT/R can transmit your HDMI, audio, data & USB signal up to 10km over single-mode fiber, or up to 300 m over multi-mode fiber. requires no adjustments, equalization or de-skewing during installation. plug and play connection between Apple TV 4K, Fire TV Stick 4K, nVidia Shield TV, game console, or other professional video.

The HDMI KVM Fiber Optic Extender support HDMI 2.0, resolution up to 4K 60Hz (4:4:4), 4K 30Hz (4:4:4), Backward compatible. EDID is managed by maintaining continuous EDID communication with the source, ensuring that it powers up properly and maintains video output. For HDMI signals with protected content, the VOS-1HDMI-ADUT/R continuously authenticates HDCP compliance to support quick and reliable transmission, desinged to solve the installers common problems with long distance HDMI transmission.

• HDMI
HDMI Version:	HDMI 2.0
HDMI Connector:	HDMI Female
Data Rate:	18Gbps
Compliance:	HDCP 2.2
Max Resolution:	4K@60Hz 4096×2160, 3840x2160 (4:4:4 / 4:2:2 / 4:2:0),
	4K@30Hz 4096×2160, 3840x2160 (4:4:4 / 4:2:2 / 4:2:0)
	Backward compatible
• Audio
Number of Channels:	1-Ch Duplex Stereo Audio
Connector:	3.5mm TRS Jack
Audio input/output Level:	+4dBu nominal
Audio Type:	Unbalanced, Line Level
Audio in/output impedance:	600Ω
Frequency Response:	20Hz ~ 20KHz
Sample Rate:	48KHz, 24K bit rate
Signal-to-Noise Ratio(SNR):	96dB
Distortion:	<0.05%
• Data
Number of Channels:	1-Ch Duplex Rs232 Data
Connector:	3-pin Terminal Block
Data Formats:	Rs232 Data
Data Rate:	DC to 115.2Kbps
Bit Error Rate:	< 10E-9
• USB
USB Version:	USB 1.1
USB Connector:	Type B x 1 (Transmitter)
	Type A x 2 (Receiver)
• Optical
Connector:	LC (SFP)
Fiber Type:	Single-mode 10km or Multi-mode 300m
Tx Output Power:	>-3dB
Receiver Sensitivity:	>-10dB
• Electrical & Mechanical
Input Power Requirements:	DC12V1A
Power Adapter:	AC100V~240V
Power Connector:	DC Power Connector
Power Consumption:	<3W
Stand-Alone Dimensions:	163mm x 100mm x 29mm
Shipping Weight:	1.2kg (include TX & RX)
• Environmental
Operating Temperature:	-20°C ~+70°C
Storage Temperature:	-40°C~+85°C
Relative Humidity:	0%~95% (non-condensing)
MTBF:	>100,000 hours

The models listed here are our most commonly used options.
For other models or customization needs, please contact us directly. We welcome inquiries for customized solutions.

Part Number	Description
VOS-HDMI-T/R-Mini	Mini HDMI over Fiber Extender, 4K@60Hz (4:2:0), HDMI 2.0
VOS-1HDMI-DT/R	1-Channel HDMI + 1 Duplex RS232 Data, 4K@30Hz (4:4:4), HDMI 1.4
VOS-1HDMI-ADT/R	1-Channel HDMI + 1 Duplex Stereo Audio + 1 Duplex Data, 4K@60Hz (4:4:4), HDMI 2.0
VOS-1HDMI-ADUT/R	1-Channel HDMI + 1 Duplex Stereo Audio + 1 Duplex Data + USB for KVM, 4K@60Hz (4:4:4), HDMI 2.0
VOS-DVI-T/R-Mini	Mini DVI over Fiber Extender, 4K@30Hz
VOS-1DVI-DT/R	1-Channel DVI + 1 Duplex RS232 Data, 4K@30Hz
VOS-1VGA-ADT/R	1-Channel VGA + 1 Duplex Stereo Audio + 1 Duplex Data, 1080p
VOS-1VGA-ADUT/R	1-Channel VGA + 1 Duplex Stereo Audio + 1 Duplex Data + USB for KVM, 1080p
