DVI to Fiber Converter

DVI	-	RS232	-	-

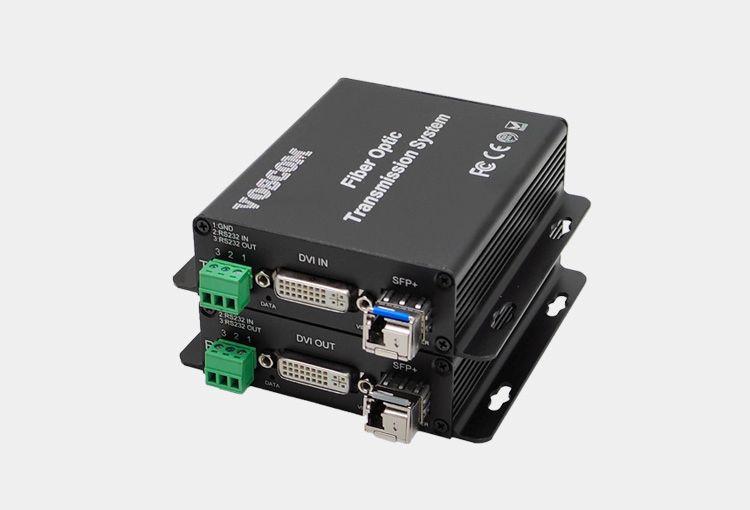

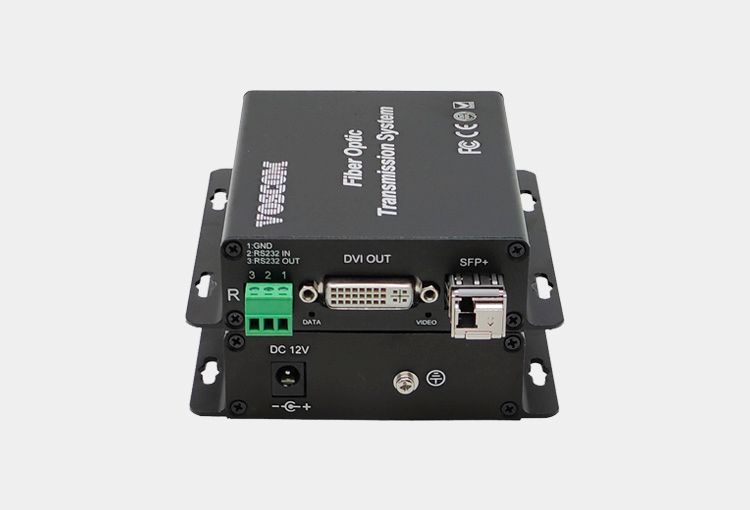

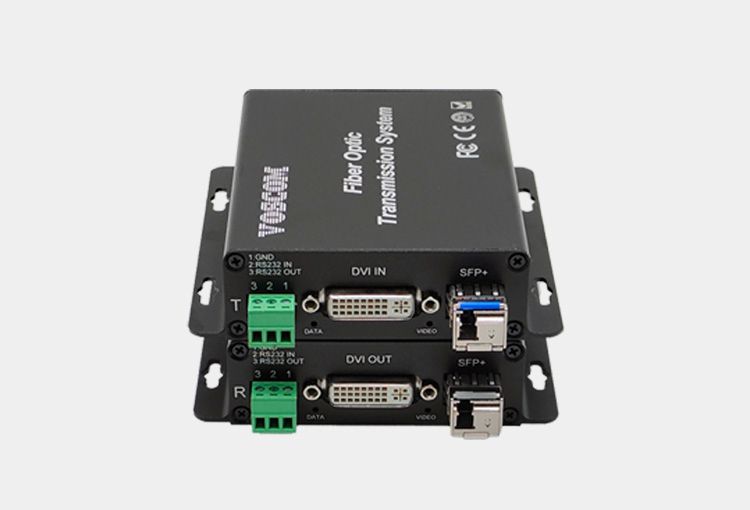

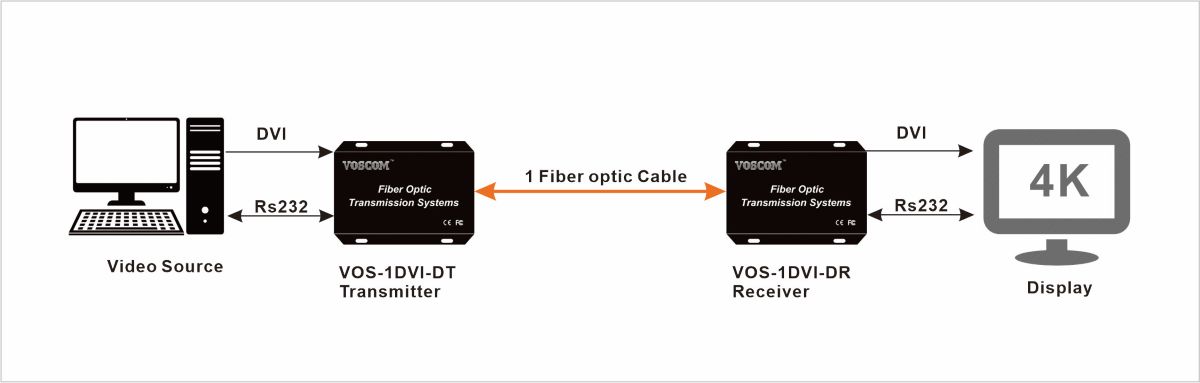

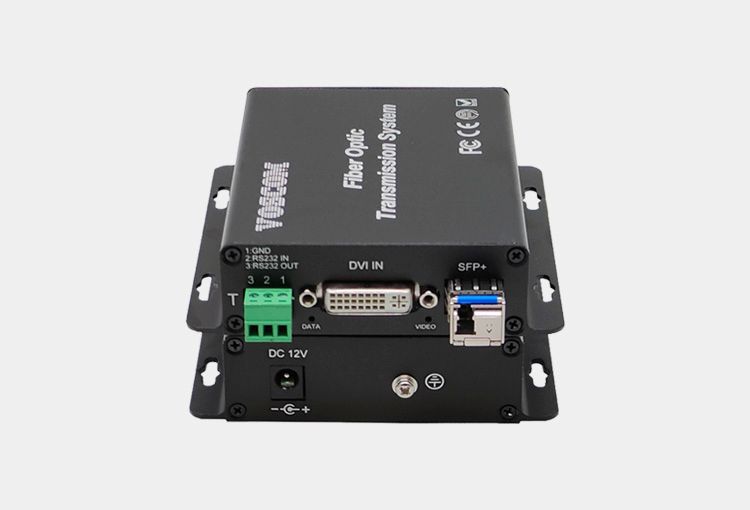

VOSCOM DVI to Fiber Converter, VOS-1DVI-DT/R-can transmit your DVI signal up to 10km over single-mode fiber, or up to 300 m over multi-mode fiber. requires no adjustments, equalization or de-skewing during installation. plug and play connection between Apple TV 4K, Fire TV Stick 4K, nVidia Shield TV, game console, or other professional video.

The fiber extender supports resolution up to 4K 30Hz (4:4:4), Backward compatible. EDID is managed by maintaining continuous EDID communication with the source, ensuring that it powers up properly and maintains video output. the VOS-1DVI-DT/R desinged to solve the installers common problems with long distance DVI transmission.

• DVI
Number of Channels:	1-Channel DVI
DVI Connector:	DVI-D Female
Data Rate:	10.2Gbps
Max Resolution:	4K@30Hz 4096×2160, 3840x2160 (4:4:4 / 4:2:2 / 4:2:0)
	Backward compatible
• Data
Number of Channels:	1-Ch Duplex Rs232 Data
Connector:	3-pin Terminal Block
Data Formats:	Rs232 Data
Data Rate:	DC to 115.2Kbps
Bit Error Rate:	< 10E-9
• Optical
Connector:	LC (SFP)
Fiber Type:	Single-mode 10km or Multi-mode 300m
Tx Output Power:	>-3dB
Receiver Sensitivity:	>-10dB
• Electrical & Mechanical
Input Power Requirements:	DC12V1A
Power Adapter:	AC100V~240V
Power Connector:	DC Power Connector
Power Consumption:	<3W
Stand-Alone Dimensions:	104mm x 103mm x 28mm
Shipping Weight:	1.0kg (include TX & RX)
• Environmental
Operating Temperature:	-20°C ~+70°C
Storage Temperature:	-40°C~+85°C
Relative Humidity:	0%~95% (non-condensing)
MTBF:	>100,000 hours

The models listed here are our most commonly used options.
For other models or customization needs, please contact us directly. We welcome inquiries for customized solutions.

Part Number	Description
VOS-HDMI-T/R-Mini	Mini HDMI over Fiber Extender, 4K@60Hz (4:2:0), HDMI 2.0
VOS-1HDMI-DT/R	1-Channel HDMI + 1 Duplex RS232 Data, 4K@30Hz (4:4:4), HDMI 1.4
VOS-1HDMI-ADT/R	1-Channel HDMI + 1 Duplex Stereo Audio + 1 Duplex Data, 4K@60Hz (4:4:4), HDMI 2.0
VOS-1HDMI-ADUT/R	1-Channel HDMI + 1 Duplex Stereo Audio + 1 Duplex Data + USB for KVM, 4K@60Hz (4:4:4), HDMI 2.0
VOS-DVI-T/R-Mini	Mini DVI over Fiber Extender, 4K@30Hz
VOS-1DVI-DT/R	1-Channel DVI + 1 Duplex RS232 Data, 4K@30Hz
VOS-1VGA-ADT/R	1-Channel VGA + 1 Duplex Stereo Audio + 1 Duplex Data, 1080p
VOS-1VGA-ADUT/R	1-Channel VGA + 1 Duplex Stereo Audio + 1 Duplex Data + USB for KVM, 1080p
