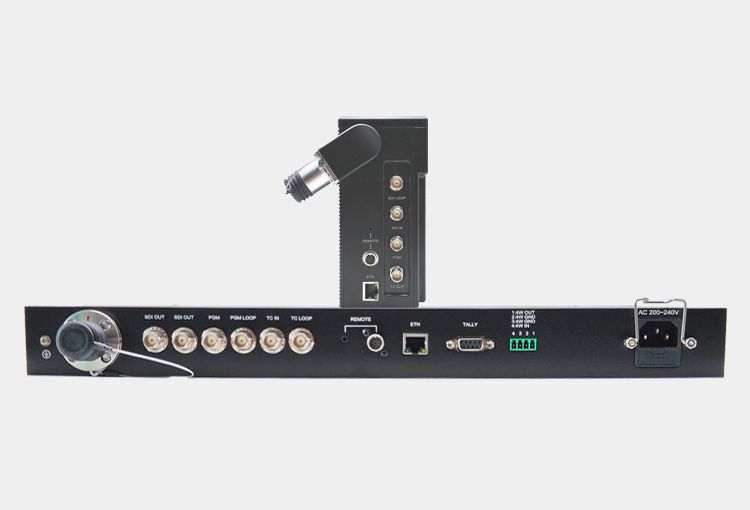

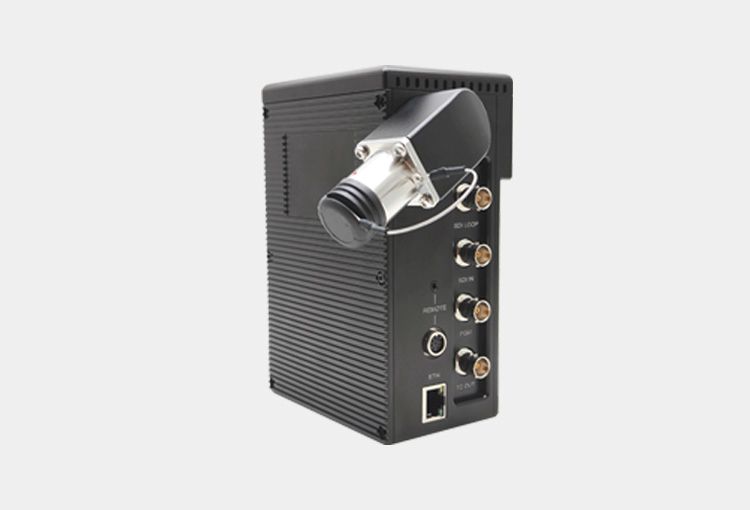

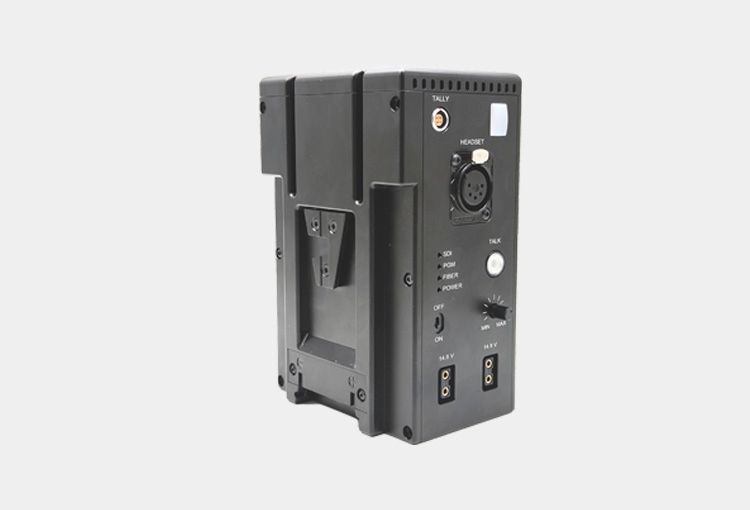

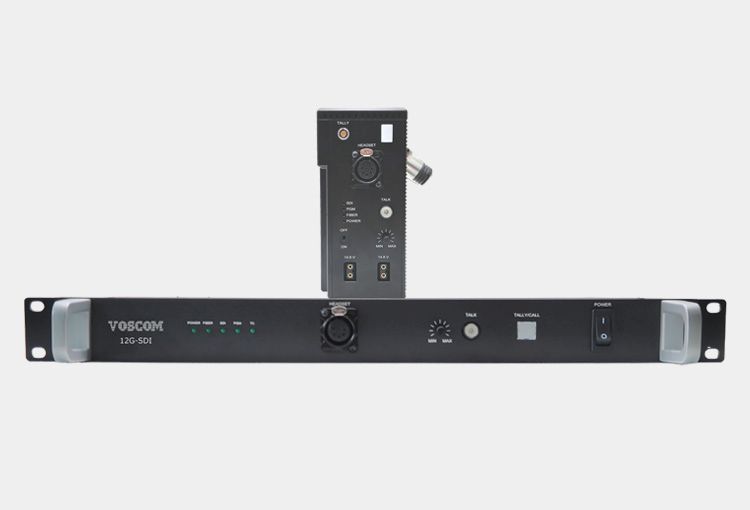

VOSCOM CineLock sereis, VOS-4K6S can transport 1-Channel 12G-SDI with PGM (Return 12G-SDI) signal from the camera to Base Station up to 300 meters via fiber cable. Full camera control is provided by the
camera manufacturer’s control panel via remote or a Gigabit Ethernet path. also support Time code / Genlock, Intercom and Tally.
The system puts all of the signals needed for multicamera 4K/UHDTV production onto a SMPTE hybrid fiber cable, ensuring robust, trouble-free connectivity on any studio or remote production.
12G-SDI over SMPTE 304M Hybrid Fiber Cable
1-Ch Bi-Directional 12G-SDI + Intercom + Time Code + Remote + Tally + Gigabit Ethernet
Key Features:
Support 1-Chanenl 12G-SDI and PGM (one Return 12G-SDI)
Automatic detection and re-clocking of 12G, 6G, 3G,1.5G, 270M SDI data rates
Support Hybrid Fiber Connector 3K.93C, SMPTE 304M
Support Clear-com or Telex's Party Line intercom, compatible with 4-wire intercom.
Support Time Code or Genlock
Support Tally, Remote control and Gigabit Ethernet
Compatible with V-mount or A-mount camcorders
LED Status Provide Rapid Indication of Operating Parameters
Support two D-Tap 14.8V power output
please check the datasheet for the details
please check the datasheet for the details
please check the datasheet for the details
