3G-SDI to Fiber converter

3G-SDI or 12G-SDI	-	-	-	-

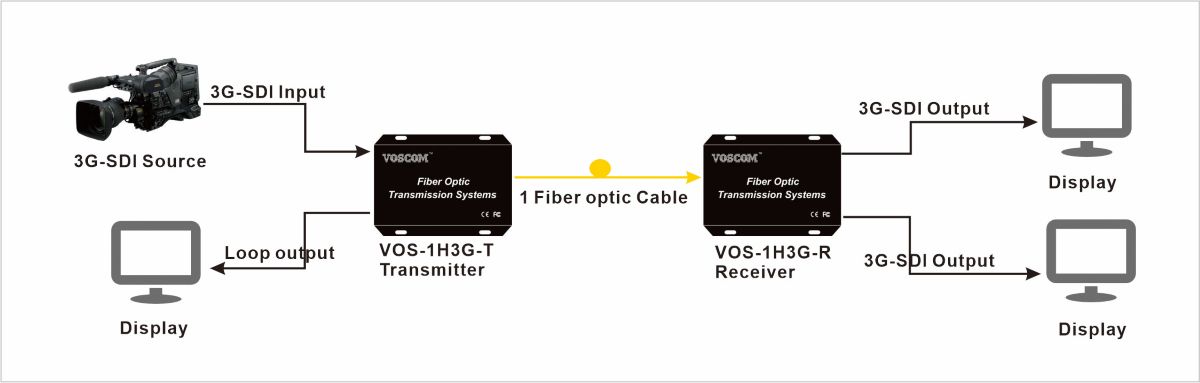

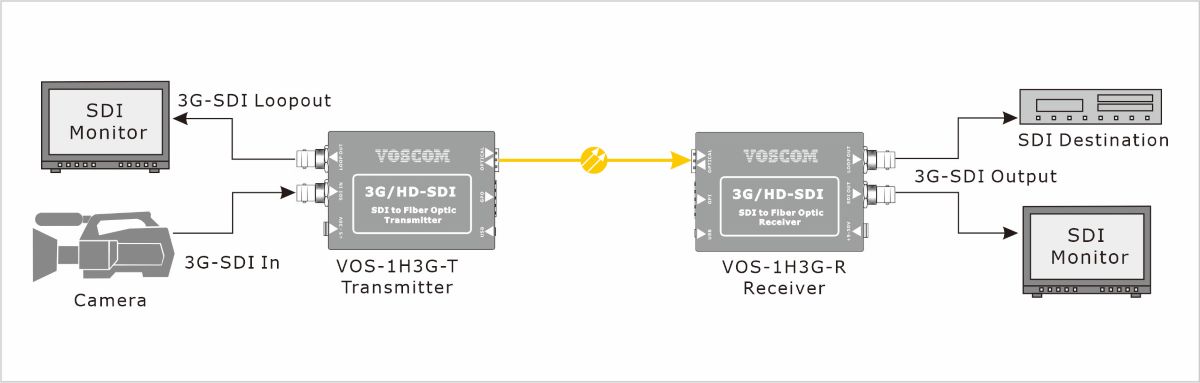

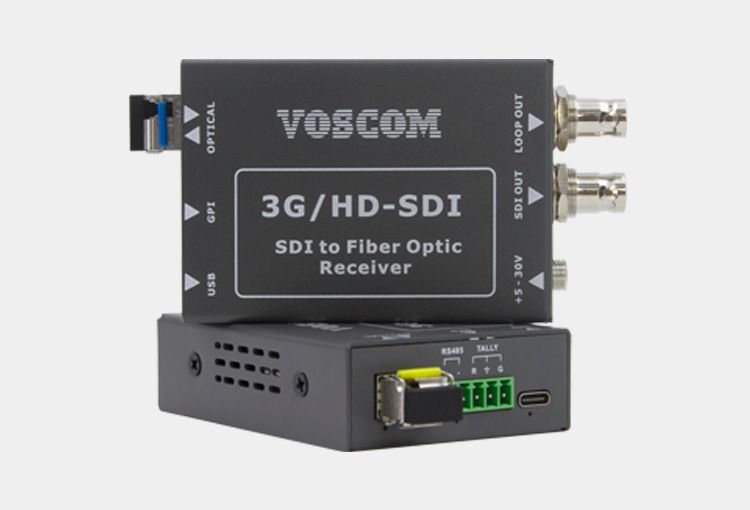

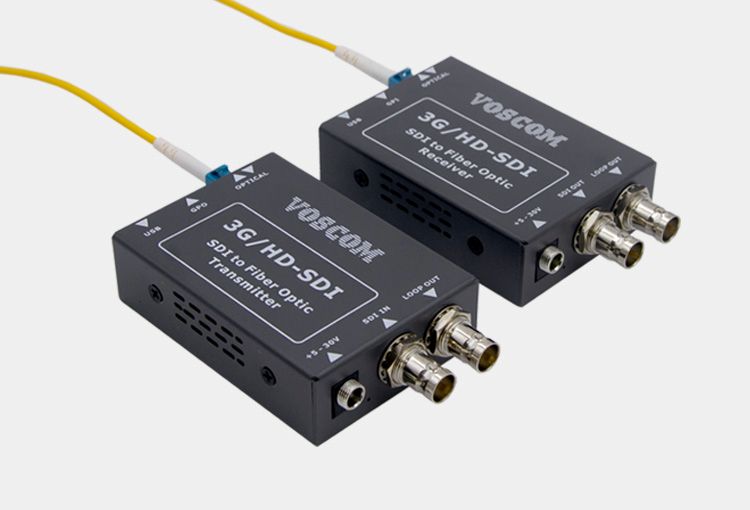

VOSCOM 3G-SDI to Fiber converter, VOS-1H3G-T/R provides for the digital transmission of 1-Channel uncompressed 3G-SDI, HD-SDI or SD-SDI 1080p video over fiber and support one loop output for local display, dual outputs for two displays in the remote end.

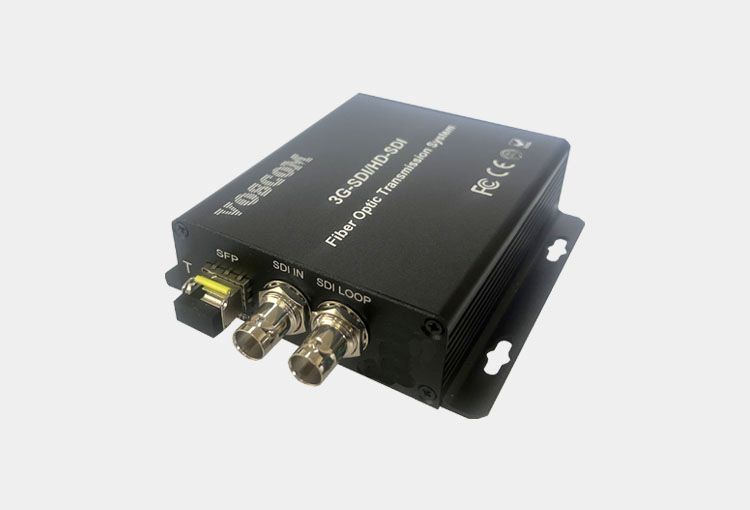

VOSCOM 3G-SDI to Fiber converter use a compact, low-profile enclosure that works well in tight spaces around and behind equipment racks, trucks and on camera. and the converters meet all relevant SMPTE specifications, and offering electrical isolation to eliminate potential ground loop problems for a rugged, versatile solution that is suitable for a variety of applications.

Stand-alone or rack-mount. All 3G-SDI to fiber converter of VOS-1H3G-T/R comes in an insert card version. The cards can be inserted into our 16-slot, 19inch 2U or 4U rack (VOS-CH02, VOS-CH04).

• 3G-SDI
Number of Channels:	1-Channel 3G-SDI
Data Rate:	270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps - Auto Select
Standards:	SMPTE 424M (3G-SDI), SMPTE 292M (HD-SDI), SMPTE 259M (SD-SDI)
Max Resolution:	1080p @ 60Hz
• Optical
Optical Connector:	LC (SFP)
Fiber Type:	Single-Mode, Single-Fiber
Rate:	3Gbps
Tx Output Power:	>-6dB
Receiver Sensitivity:	>-14dB

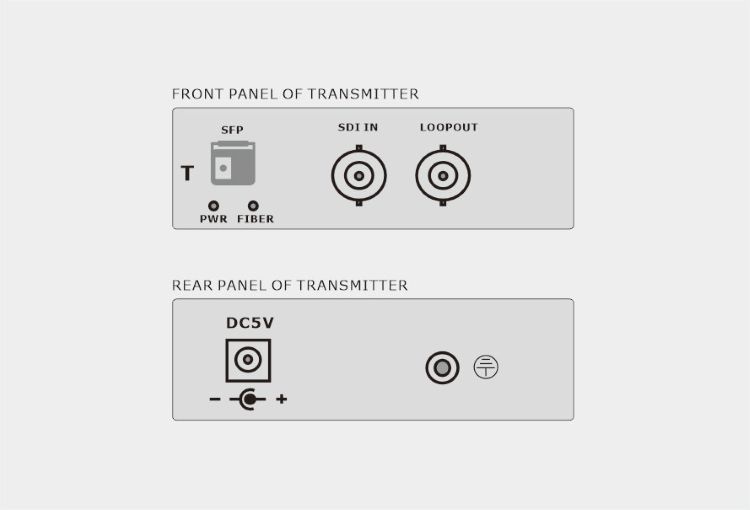

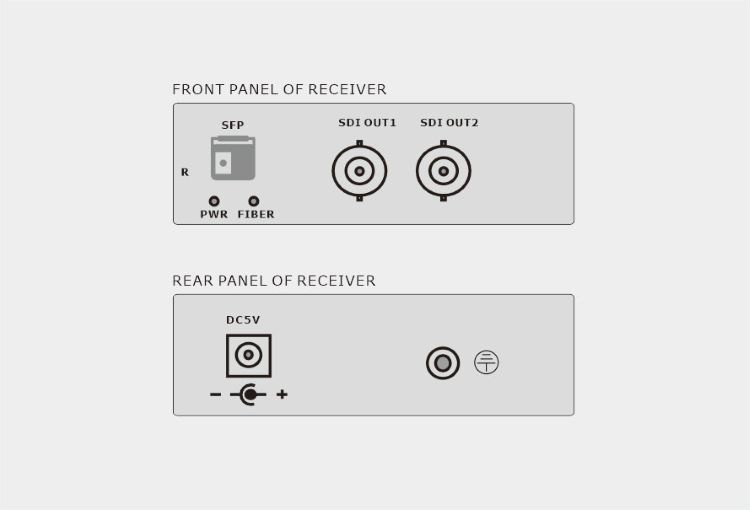

• Connectors
Video Connector:	75 Ohm BNC (Gold Center Pin)
Optical Connector:	LC (SFP)
Power Connector:	DC Power Connector
• Electrical & Mechanical
Input Power Requirements:	DC 5V@1A
Power Adapter:	AC100V~240V
Power Consumption:	<2W

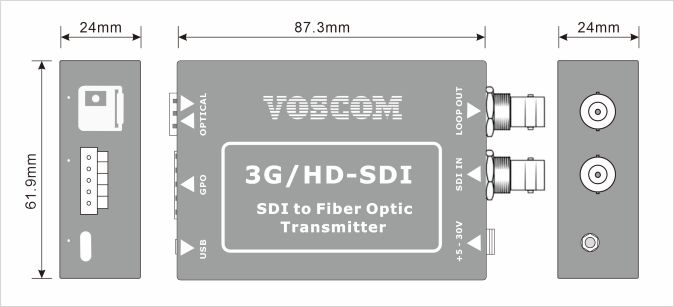

Stand-Alone Dimensions:	104mm x 103mm x 28mm
Shipping Weight:	1.0kg (include TX & RX)
• Environmental
Operating Temperature:	-20°C ~+75°C
Storage Temperature:	-40°C~+85°C
Relative Humidity:	0%~95% (non-condensing)
MTBF:	>100,000 hours

1）We will also list devices with the same specifications, just the 3G-SDI channels are different.
2）3G-SDI can be replaced with 12G-SDI while all other specifications remain unchanged.
3）The models listed here are our most commonly used options. For other models or customization needs, please contact us directly. We welcome inquiries for customized solutions.

Part Number	Description

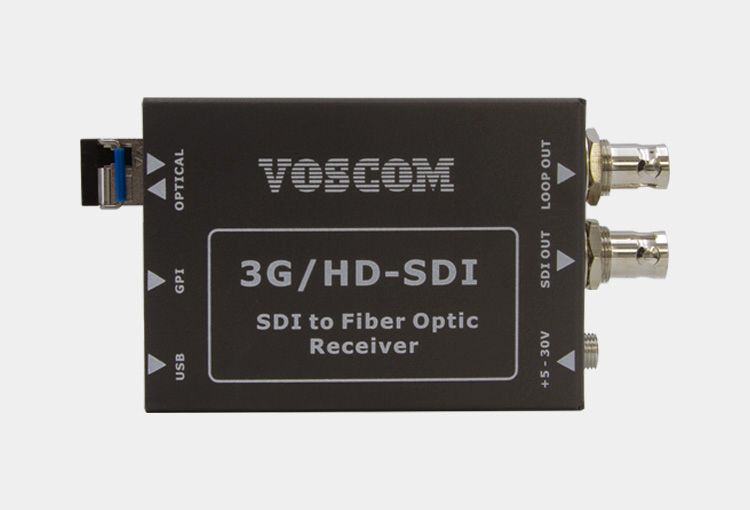

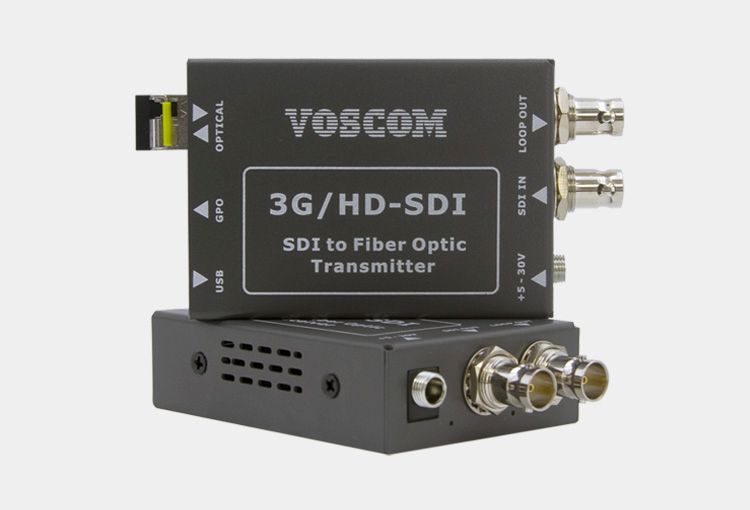

VOS-3G-T/R-Mini	1-Channel 3G-SDI to Fiber Converter, Mini Type, size only 72mm x 18mm x 18mm
VOS-1H3G-T/R	1-Channel 3G-SDI to Fiber Converter, Stand-Alone Type, with Loopout, SFP optical module
VOS-2H3G-T/R	2-Channel 3G-SDI to Fiber Converter, Stand-Alone Type, with Loopout
VOS-4H3G-T/R	4-Channel 3G-SDI to Fiber Converter, Stand-Alone Type (if need the loopout, size will be 19inch 1U Rack)
VOS-8H3G-T/R	8-Channel 3G-SDI to Fiber Converter, 19inch 1U Rack, with Loopout
VOS-16H3G-T/R	16-Channel 3G-SDI to Fiber Converter, 19inch 1U Rack, with Loopout
VOS-12G-T/R-Mini	1-Channel 12G-SDI to Fiber Converter, Mini Type, size only 72mm x 18mm x 18mm
VOS-1H12G-T/R	1-Channel 12G-SDI to Fiber Converter, Stand-Alone Type, with Loopout SFP optical module
VOS-1DH12G-T/R	1-Channel Bi-Directional 12G-SDI to Fiber Converter, Stand-Alone Type, with Loopout, SFP optical module
VOS-2H12G-T/R	2-Channel 12G-SDI to Fiber Converter, Stand-Alone Type, with Loopout
VOS-4H12G-T/R	4-Channel 12G-SDI to Fiber Converter, Stand-Alone Type (if need the loopout, size will be 19inch 1U Rack)
VOS-8H12G-T/R	8-Channel 12G-SDI to Fiber Converter, 19inch 1U Rack, with Loopout
VOS-16H12G-T/R	16-Channel 12G-SDI to Fiber Converter, 19inch 1U Rack, with Loopout
