12G-SDI Fiber Optic Transceiver

12G-SDI	-	-	-	-

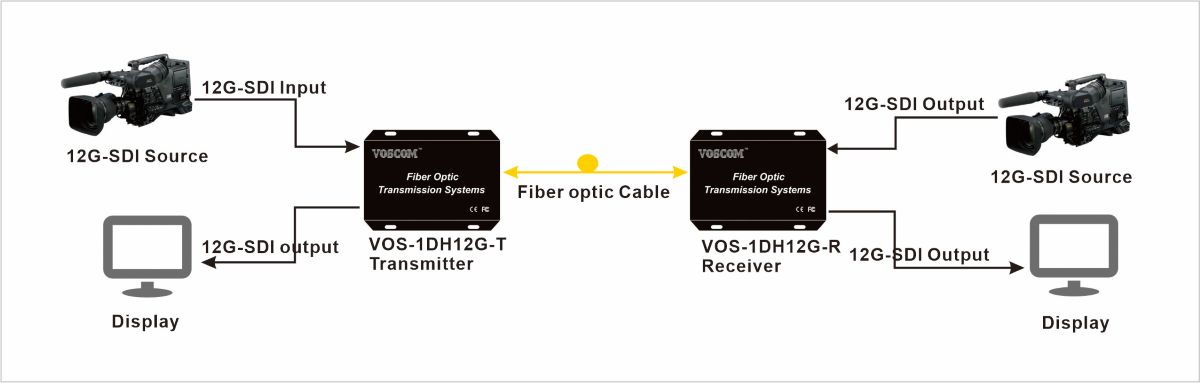

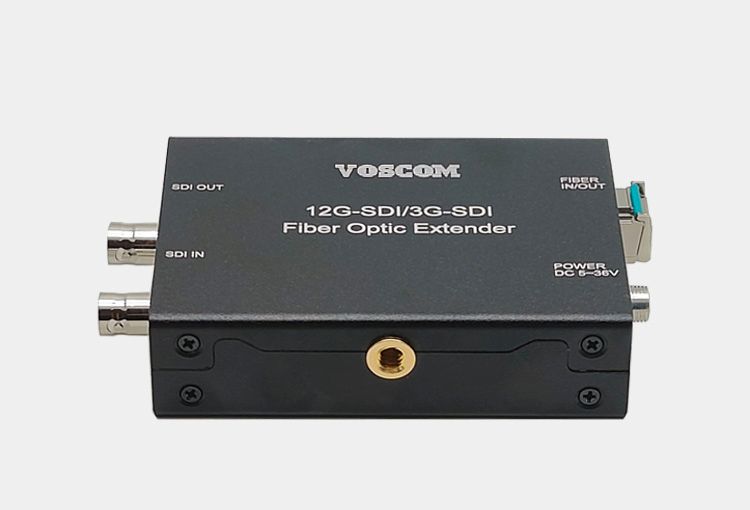

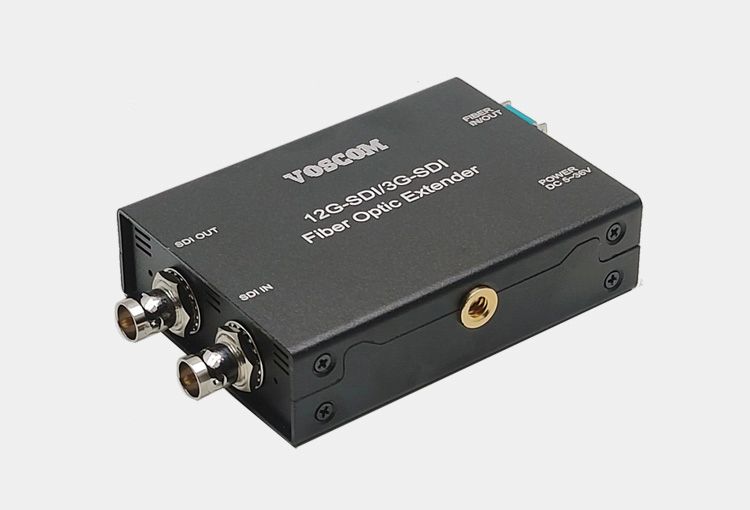

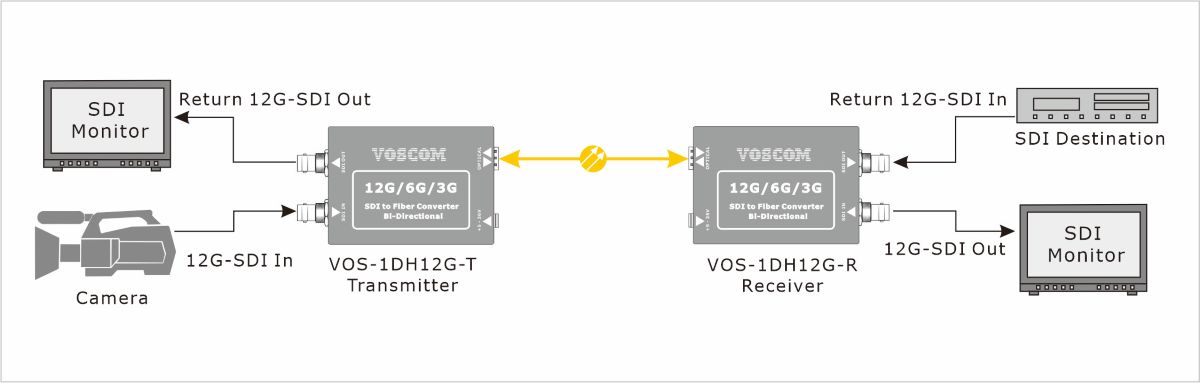

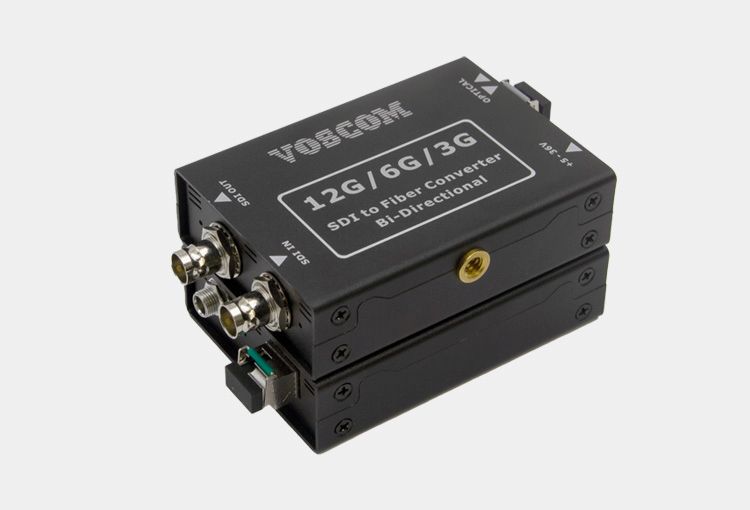

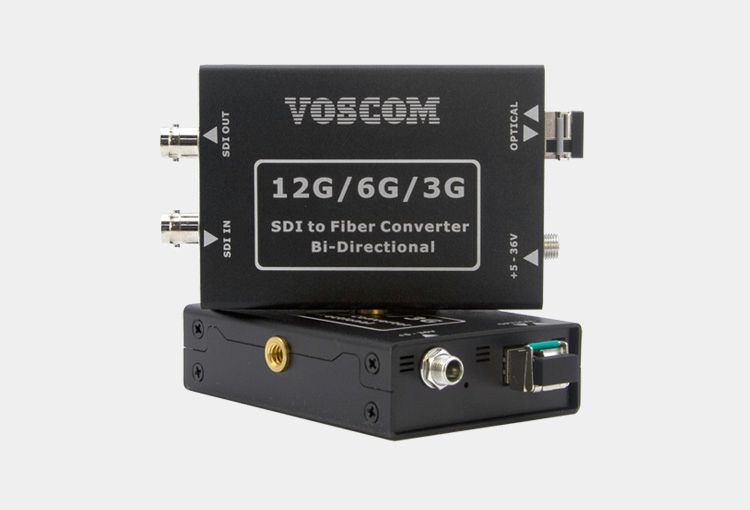

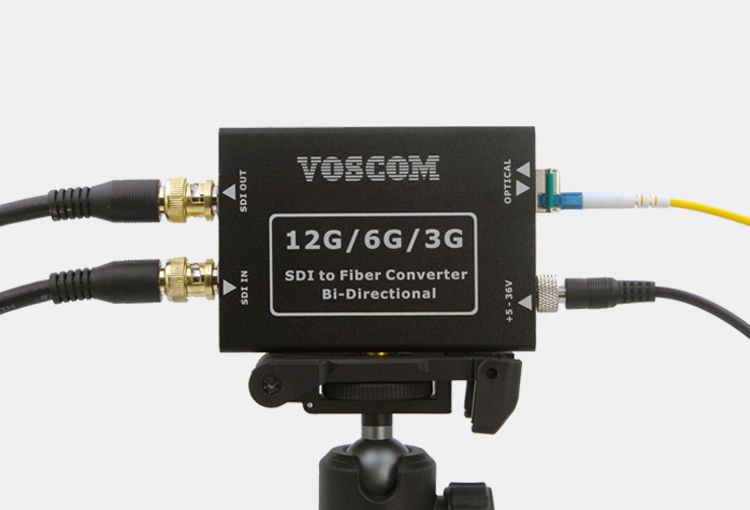

VOSCOM 12G-SDI Fiber Optic Transceiver，VOS-1DH12G-T/R enables fiber-optic transmission of 1-channel uncompressed Bi-Directional 12G-SDI, 6G-SDI, or 3G-SDI. with a 1/4-inch screw mount, conveniently powered via a V-mount portable power supply.

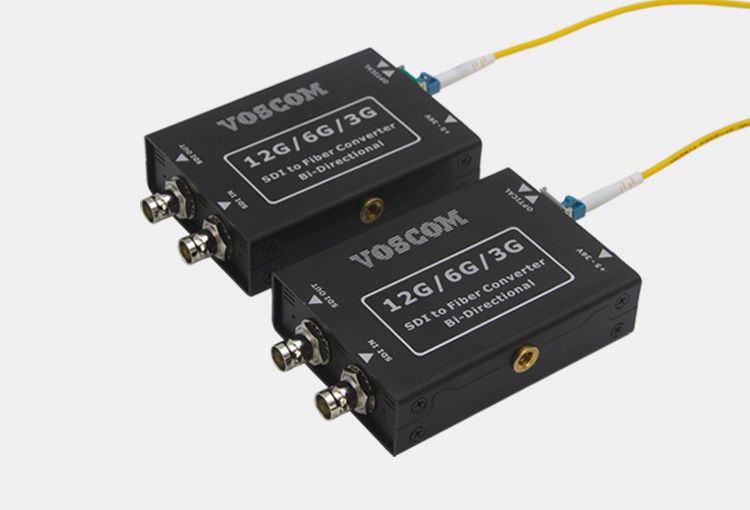

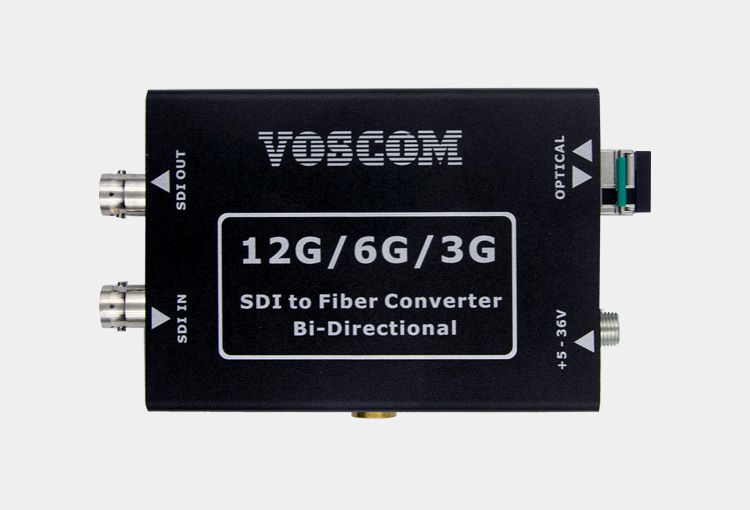

VOSCOM 12G-SDI Fiber Optic Transceiver use a compact, low-profile enclosure that works well in tight spaces around and behind equipment racks, trucks and on camera. and the converters meet all relevant SMPTE specifications, and offering electrical isolation to eliminate potential ground loop problems for a rugged, versatile solution that is suitable for a variety of applications.

Stand-alone or rack-mount. All 12G-SDI video over Fiber of VOS-1DH12G-T/R comes in an insert card version. The cards can be inserted into our 16-slot, 19inch 2U or 4U rack (VOS-CH02, VOS-CH04).

• 12G-SDI
Number of Channels:	1-Channel Bi-Directional 12G-SDI
Data Rate:	270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.880 Gbps - Auto Select
Standards:	SMPTE 2082(12G-SDI), SMPTE 2081(6G-SDI), SMPTE 424M (3G-SDI), SMPTE 292M (HD-SDI), SMPTE 259M (SD-SDI)
Max Resolution:	4K UHD 2160 @ 60Hz
• Optical
Optical Connector:	LC (SFP)
Fiber Type:	Single-Mode, Single-Fiber
Rate:	12Gbps
Tx Output Power:	0~-3dB
Receiver Sensitivity:	-12dB

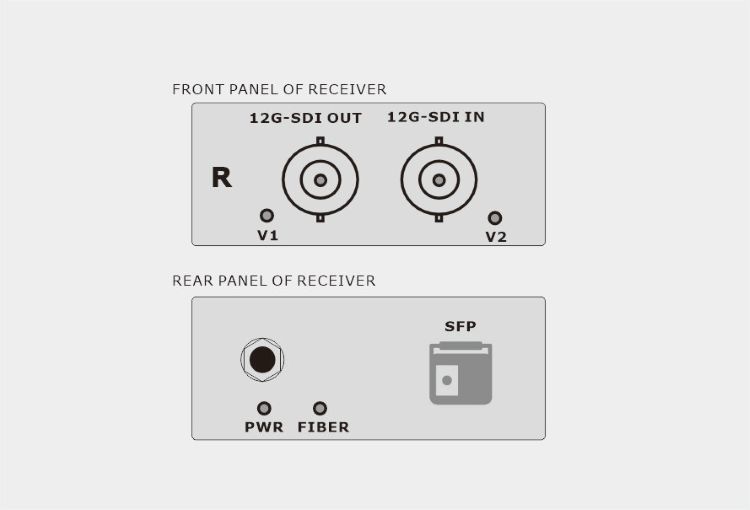

• Connectors
Video Connector:	75 Ohm BNC (Gold Center Pin)
Optical Connector:	LC (SFP)
Power Connector:	DC 5.5 x 2.1mm
• Electrical & Mechanical
Input Power Requirements:	DC 5V~36V
Power Adapter:	AC100V~240V
Power Consumption:	<1.5W

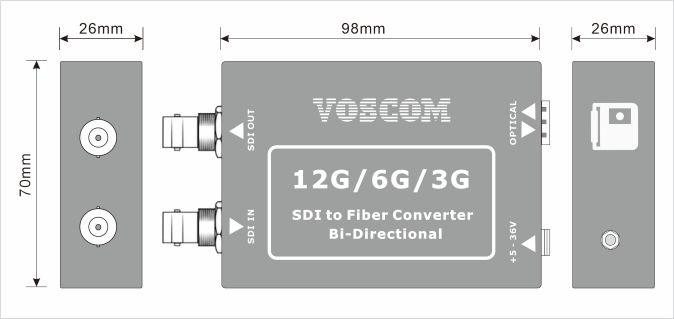

Stand-Alone Dimensions:	98mm x 70mm x 26mm
Shipping Weight:	0.5kg (include TX & RX)
• Environmental
Operating Temperature:	-20°C ~+75°C
Storage Temperature:	-40°C~+85°C
Relative Humidity:	0%~95% (non-condensing)
MTBF:	>100,000 hours

1）We will also list devices with the same specifications, just the 12G-SDI over fiber channels are different.
2）Considering cost-effectiveness, if you only need the 3G-SDI function, you can choose our 3G-SDI type.
3）The models listed here are our most commonly used options. For other models or customization needs, please contact us directly. We welcome inquiries for customized solutions.

Part Number	Description
VOS-1DH12G-T/R	1-Channel Bi-Directional 12G-SDI Fiber Optic Transceiver, Stand-Alone Type, with Loopout, SFP optical module
VOS-12G-T/R-Mini	1-Channel 12G-SDI Fiber Optic Transmitter & Receiver, Mini Type, size only 72mm x 18mm x 18mm
VOS-1H12G-T/R	1-Channel 12G-SDI Fiber Optic Transmitter & Receiver, Stand-Alone Type, with Loopout SFP optical module
VOS-2H12G-T/R	2-Channel 12G-SDI Fiber Optic Transmitter & Receiver, Stand-Alone Type, with Loopout
VOS-4H12G-T/R	4-Channel 12G-SDI Fiber Optic Transmitter & Receiver, Stand-Alone Type (if need the loopout, size will be 19inch 1U Rack)
VOS-8H12G-T/R	8-Channel 12G-SDI Fiber Optic Transmitter & Receiver, 19inch 1U Rack, with Loopout
VOS-16H12G-T/R	16-Channel 12G-SDI Fiber Optic Transmitter & Receiver, 19inch 1U Rack, with Loopout
VOS-3G-T/R-Mini	1-Channel 3G-SDI Fiber Optic Transmitter & Receiver, Mini Type, size only 72mm x 18mm x 18mm
VOS-1H3G-T/R	1-Channel 3G-SDI Fiber Optic Transmitter & Receiver, Stand-Alone Type, with Loopout, SFP optical module
VOS-2H3G-T/R	2-Channel 3G-SDI Fiber Optic Transmitter & Receiver, Stand-Alone Type, with Loopout
VOS-4H3G-T/R	4-Channel 3G-SDI Fiber Optic Transmitter & Receiver, Stand-Alone Type (if need the loopout, size will be 19inch 1U Rack)
VOS-8H3G-T/R	8-Channel 3G-SDI Fiber Optic Transmitter & Receiver, 19inch 1U Rack, with Loopout
VOS-16H3G-T/R	16-Channel 3G-SDI Fiber Optic Transmitter & Receiver, 19inch 1U Rack, with Loopout
