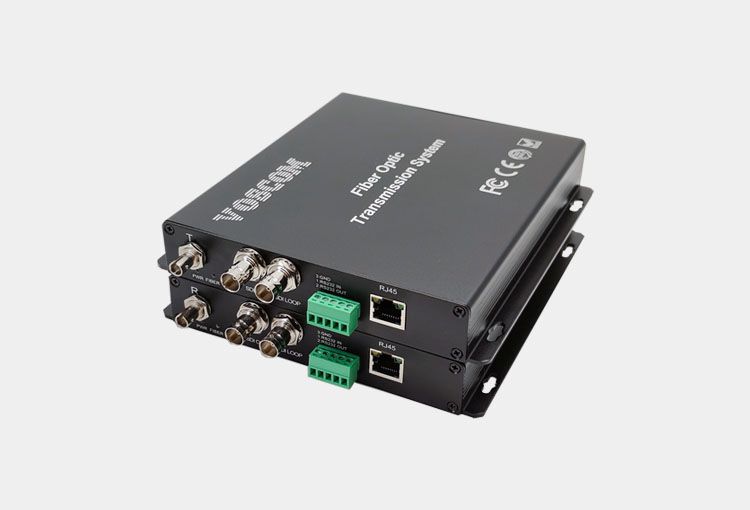

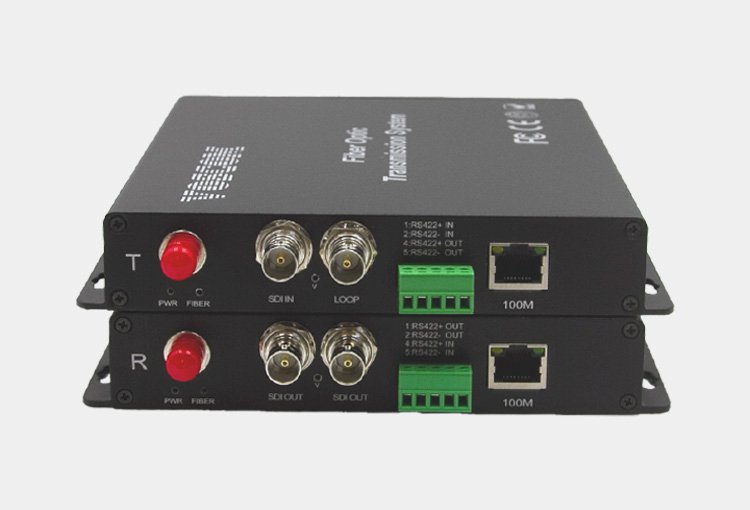

Multi-channel 3G-SDI transmission over one core fiber with CWDM
Support SMPTE 424M / 292M / 259M or DVB-ASI compliant
Automatic detection and re-clocking of 3G,1.5G, 270M SDI data rates
Supports embedded digital audio stream
Coax inputs are equalized(EQ), Coax outputs are with driving function (CD)
Support Single-mode fiber up to 20km
LED Status Provide Rapid Indication of Operating Parameters
No EMI or RFI and no ground loops
Stand alone or rack-mount
|

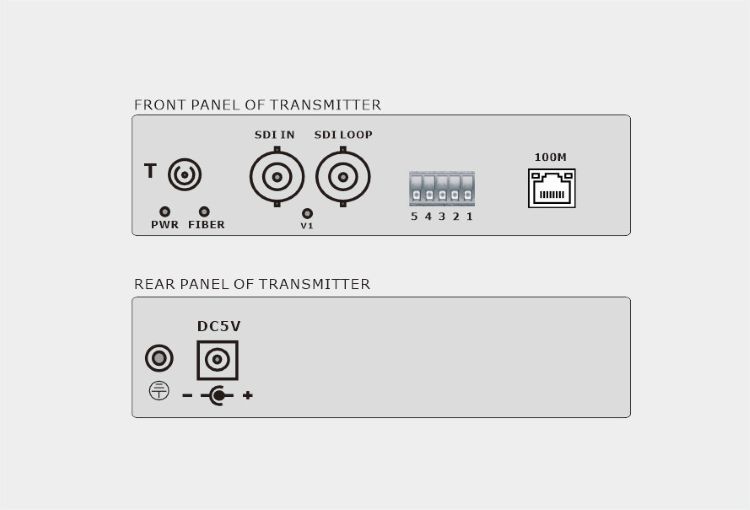

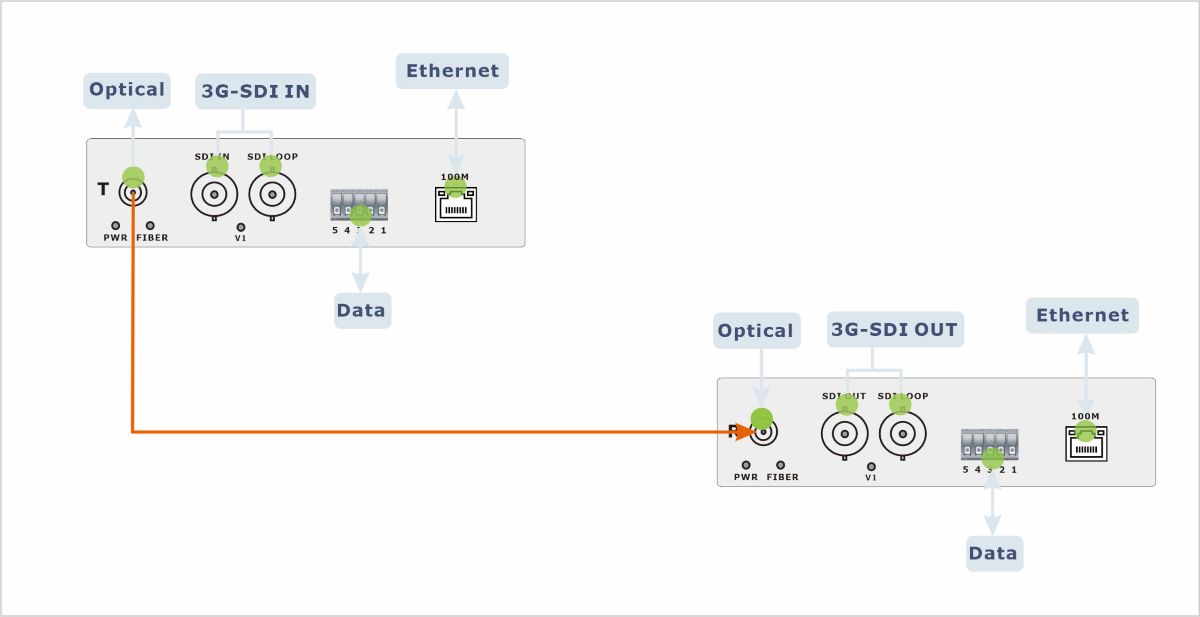

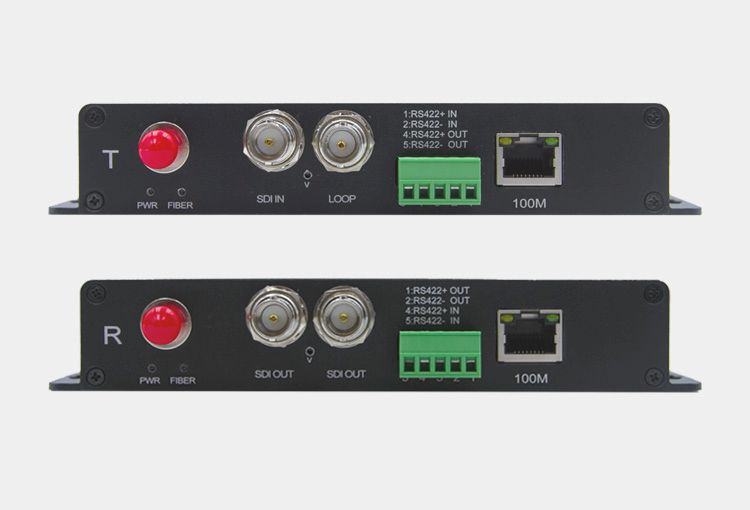

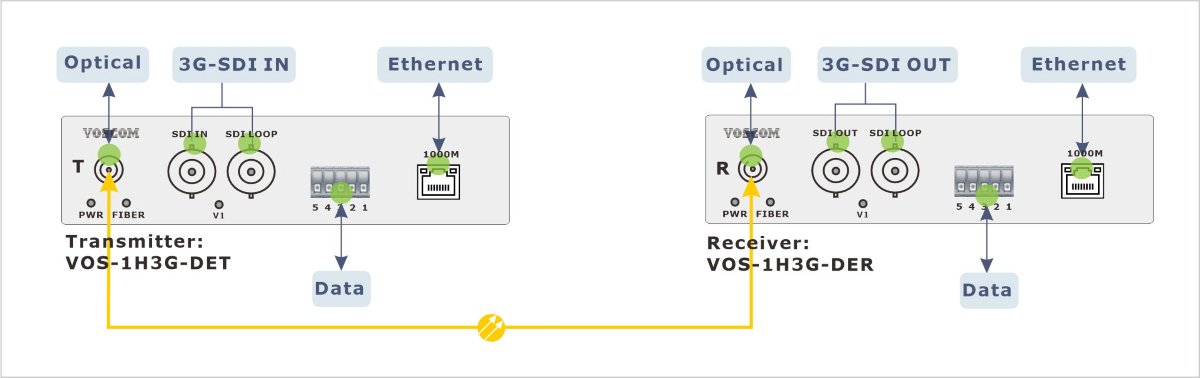

3G-SDI |
- | Data | - | 100M Ethernet |
 |
|
 |
|
 |
| • 3G-SDI |
|
|---|---|
| Number of Channels: | 1-Channel 3G-SDI |
| Connector: | 75 Ohm BNC (Gold Center Pin) |
| Data Rate: | 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps - Auto Select |
| Standards: | SMPTE 424M (3G-SDI), SMPTE 292M (HD-SDI), SMPTE 259M (SD-SDI) |
| Max Resolution: | 1080p @ 60Hz |
| • Data* |
|
| Number of Channels: | 1-Channel Duplex Data |
| Connector: | Terminal Block |
| Data Type: | Rs485 or Rs232 or RS422 |
| Data Rate: | DC to 1Mbps |
| • Ethernet |
|
| Number of Channels: | 1-Channel |
| Data Rate: | 10/100 Mbps |
| Connector: |
RJ-45, Auto MDI/MDI-X |
| • Optical |
|
| Optical Connector: | ST, FC or LC Optical connector optional |
| Wavelengths: | 1310/1470/1550nm |
| Fiber Type: | Single-Mode, Single-Fiber, 20km |
| Rate: | 3Gbps |
| Tx Output Power: | >-6dB |
| Receiver Sensitivity: | >-14dB |
| • Electrical & Mechanical |
|
| Input Power Requirements: |
DC 5V@2A |
| Power Adapter: |
AC100V~240V |
| Power Consumption: |
<5W |
| Stand-Alone Dimensions: |
192mm x 167mm x 28mm |
| Shipping Weight: |
2.0kg (include TX & RX) |
| • Environmental |
|
| Operating Temperature: | -20°C ~+75°C |
| Storage Temperature: | -40°C~+85°C |
| Relative Humidity: | 0%~95% (non-condensing) |
| MTBF: |
>100,000 hours |
| Part Number | Description |
|---|---|
| VOS-1H3G-DET/R | 1-Channel 3G-SDI + 1 Duplex Data + 100M Ethernet Fiber Optic Transceiver |
| VOS-1H3G-ADCET/R | 1-Channel 3G-SDI + 2 Duplex Audio + 1 Duplex Data + 1 Duplex Contact Closure(Tally) + 100M Ethernet Fiber Optic Transceiver |
|
|
|
| VOS-1H12G-DET/R | 1-Channel 12G-SDI + 1 Duplex Data + 100M Ethernet Fiber Optic Transceiver |
| VOS-1H12G-ADCET/R | 1-Channel 12G-SDI + 2 Duplex Audio + 1 Duplex Data + 1 Duplex Contact Closure(Tally) + 100M Ethernet Fiber Optic Transceiver |
