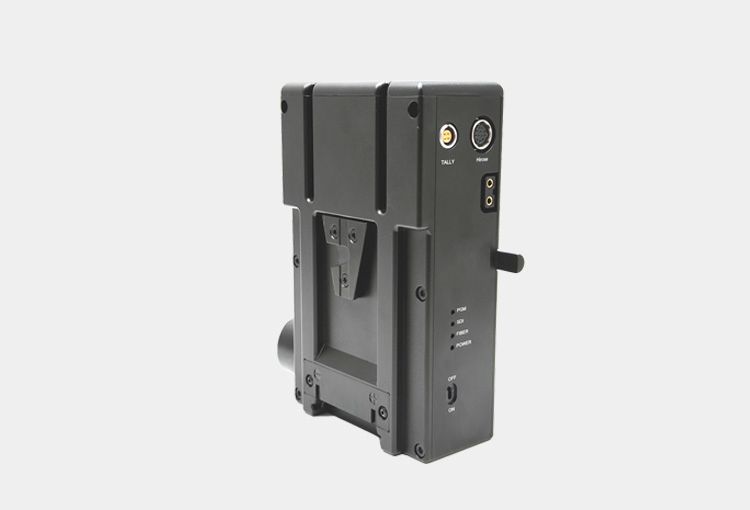

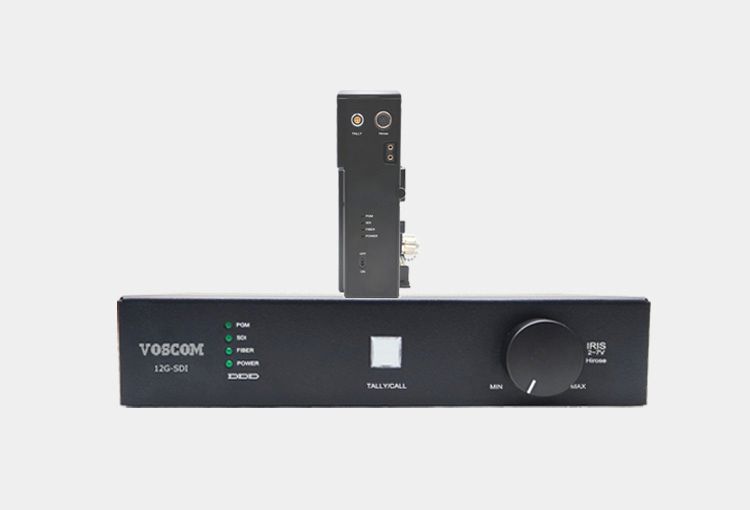

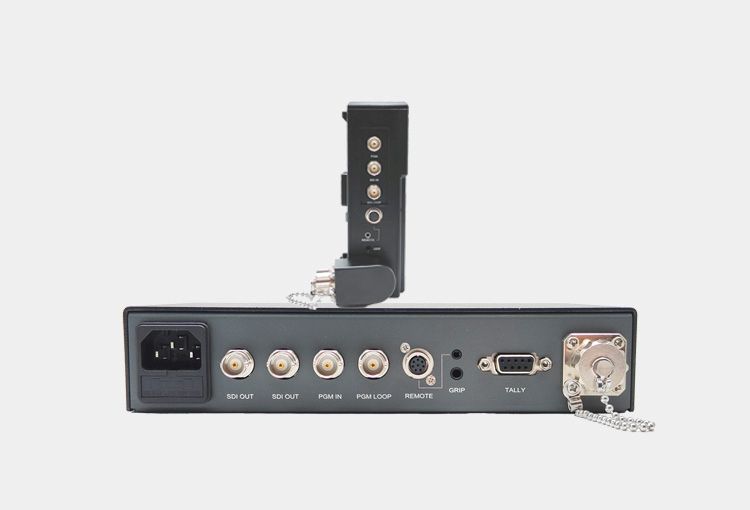

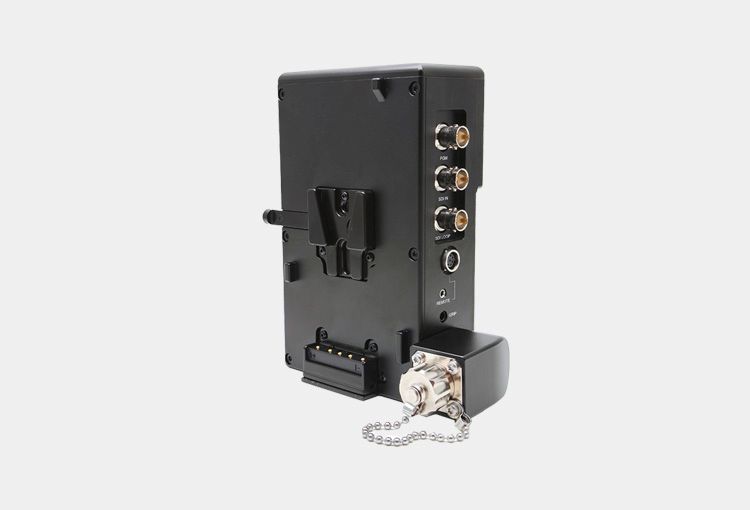

VOSCOM CineLock sereis, VOS-4K5S can transport 1-Channel 12G-SDI with PGM (Return 12G-SDI) signal
from the camera to Base Station up to 10km via fiber cable. Full camera control is provided by the
camera manufacturer’s control panel via remote, the remote support 2.5mm port and 8-PIN remote port,
It can perfectly interoperate with RCP, like SONY RM-30BP, RCP-1500/3500, etc .
The system puts all of the signals needed for multicamera 4K/UHDTV production onto one fiber cable,
ensuring robust, trouble-free connectivity on any studio or remote production.
12G-SDI fiber sytems with Remote & Tally
1-Channel Bi-Direcitonal 12G-SDI with Remote & Tally up to 10km, ODC Fiber Connector
Key Features:
Support 1-Chanenl 12G-SDI and PGM (one Return 12G-SDI)
Support SMPTE 2082 / 2081 / 424M / 292M / 259M or DVB-ASI compliant
Automatic detection and re-clocking of 12G, 6G, 3G,1.5G, 270M SDI data rates
Coax inputs are equalized(EQ), Coax outputs are with driving function (CD)
Support Battery Mount (V or A-mount), also support 9~18V power input
Support Remote 2.5mm and 8-Pin port, and 3.5mm for GRIP of SONY Fx6
Support 12-pin port Hirose for the LENS control
Dual Fiber or Singe-fiber, ODC connector, up to 10km
LED Status Provide Rapid Indication of Operating Parameters
please check the datasheet for the details
please check the datasheet for the details
please check the datasheet for the details
