Overview

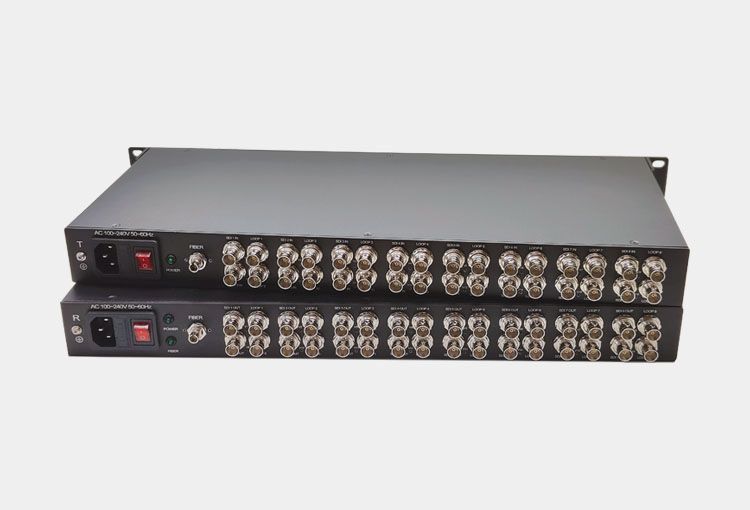

VOSCOM 16-Channel 3G-SDI Fiber Optic Multiplexer, VOS-16H3G-T/R provides 16-Channel uncompressed 3G-SDI, HD-SDI or SD-SDI 1080p video over fiber and support one loop output for local display, dual outputs for two displays in the remote end. The device also supports the selection of 8-channel Bi-directional 3G-SDI (VOS-8DH3G-T/R).
Built with industrial-grade durability, it offers EMI protection and wide-temperature operation, supporting single-mode, single-fiber up to 20km, for long-distance lossless transmission. This versatile solution ensures reliable, high-fidelity video distribution for Studio, sports broadcast, OB-Van applications.

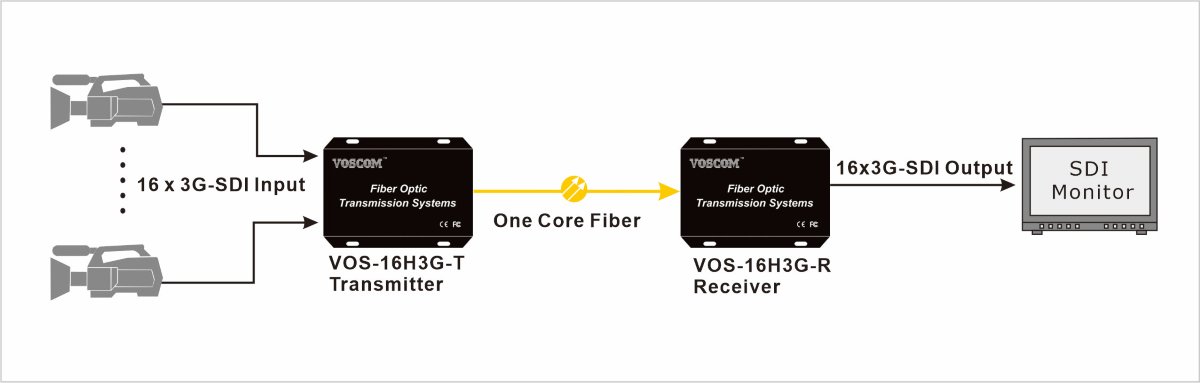

Typical Diagram of 16-Channel 3G-SDI Fiber Optic Multiplexer
Frequently Asked Questions
Q): Does this Fiber Optic Multiplexer can support 12G-SDI?
A): This device only supports 3G-SDI. but we offer two versions: 3G-SDI and 12G-SDI fiber converter. The 12G-SDI version is compatible with 6G-SDI and 3G-SDI. Please select your required 3G-SDI to fiber converter or 12G-SDI to fiber converter version in the corresponding section.
Q): What is the transmission distance of this 3G-SDI Fiber Optic Multiplexer? Does it support multi-mode fiber?
A): This device is equipped with a single-mode optical module, with a standard configuration of 20km transmission over single-mode fiber. For longer transmission distances, we can use higher optical power modules to support 40km and 60km transmission as needed. In addition, we do not recommend using multi-mode fiber. Please contact us if multi-mode fiber has already been laid in your system.
Q): How to choose the fiber optic interface? How many fiber cores are needed?
A:) Our 3G-SDI Fiber Optic Multiplexer supports a variety of fiber optic interfaces including ST, LC, FC, etc., and customized SMPTE 304M Hybrid Electrical and Fiber Optic Connector are also available. Just inform us of your required type before placing an order. The standard configuration of our device adopts single-core fiber, which saves fiber resources for the system. We also offer a dual-core fiber option, with a slightly lower price for this configuration.
Q): Besides 3G-SDI, does the device support other functions?
A): Yes, our device adopts a modular design with flexible functional configuration. In addition to 3G-SDI, it can also be configured with 12G-SDI, Balanced Audio, Genlock, Timecode, control data, Gigabit Ethernet and other functions.
