3G-SDI Fiber Optic Transmitter / Receiver

3G-SDI or 12G-SDI	-	-	-	-

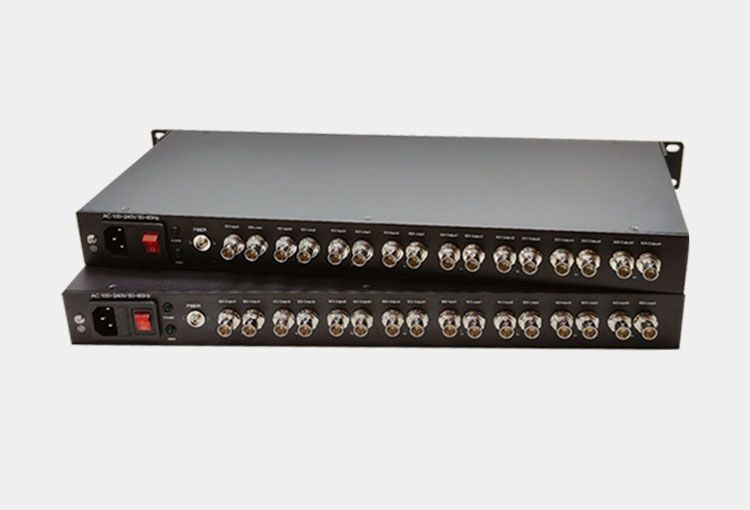

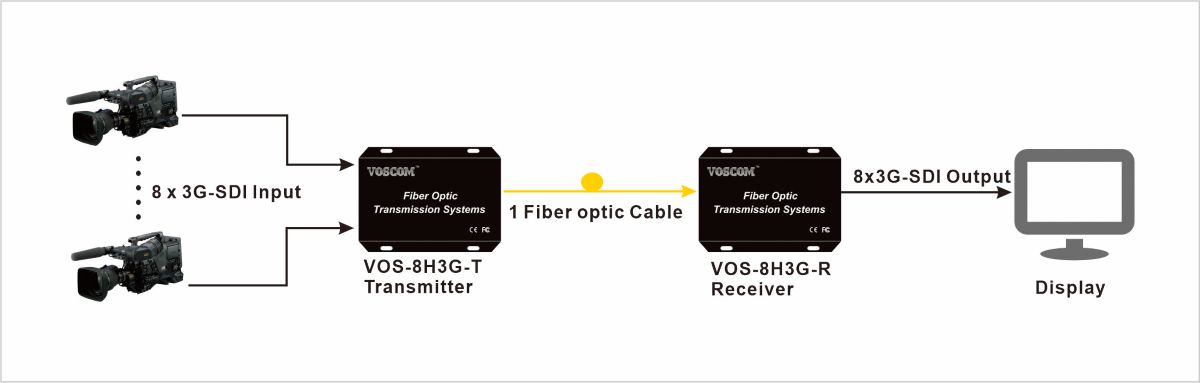

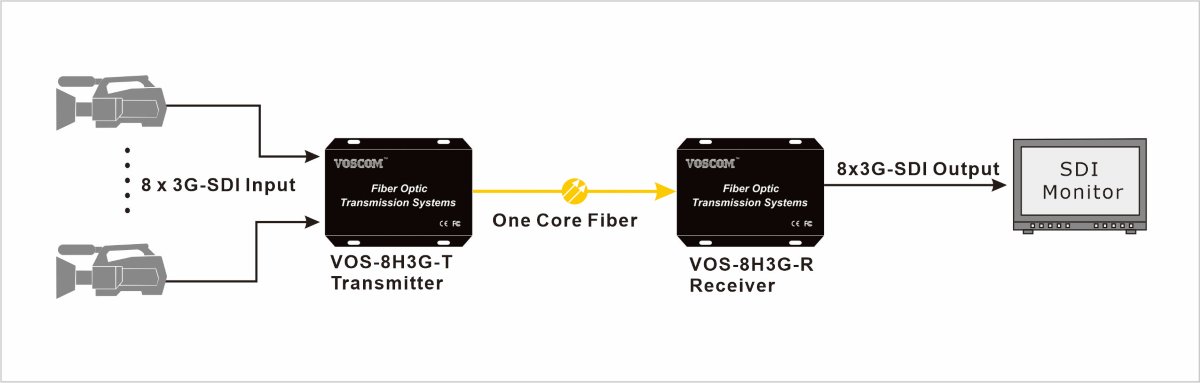

VOSCOM 3G-SDI Fiber Optic Transmitter & Receiver, VOS-8H3G-T/R provides 8-Channel uncompressed 3G-SDI, HD-SDI or SD-SDI 1080p video over fiber and support one loop output for local display, dual outputs for two displays in the remote end. supporting SMPTE 424M/292M/259M standards.

Built with industrial-grade durability, it offers EMI protection and wide-temperature operation, supporting single/multi-mode fiber for short/long-distance transmission. This versatile solution ensures reliable, high-fidelity video distribution for broadcast, surveillance, and digital signage applications.

• 3G-SDI
Number of Channels:	8-Channel 3G-SDI
Data Rate:	270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps - Auto Select
Standards:	SMPTE 424M (3G-SDI), SMPTE 292M (HD-SDI), SMPTE 259M (SD-SDI)
Max Resolution:	1080p @ 60Hz
• Optical
Optical Connector:	ST, FC or LC Optical connector optional
Wavelengths:	1310nm~1610nm
Fiber Type:	Single-Mode, Single-Fiber
Rate:	3Gbps
Tx Output Power:	>-6dB
Receiver Sensitivity:	>-14dB
• Connectors
Video Connector:	75 Ohm BNC (Gold Center Pin)
Optical Connector:	ST, FC or LC Optical Connector optional
Power Connector:	AC line cord
• Electrical & Mechanical
Power Adapter:	AC100V~240V(Built-in)
Power Consumption:	<20W
19inch 1U Rack:	445mm x 220mm x 44.5mm
Shipping Weight:	6.0kg (include TX & RX)
• Environmental
Operating Temperature:	-20°C ~+75°C
Storage Temperature:	-40°C~+85°C
Relative Humidity:	0%~95% (non-condensing)
MTBF:	>100,000 hours

1）We will also list devices with the same specifications, just the 3G-SDI channels are different.
2）3G-SDI can be replaced with 12G-SDI while all other specifications remain unchanged.
3）The models listed here are our most commonly used options. For other models or customization needs, please contact us directly. We welcome inquiries for customized solutions.

Part Number	Description
VOS-3G-T/R-Mini	1-Channel 3G-SDI Fiber Optic Transmitter / Receiver, Mini Type, size only 72mm x 18mm x 18mm
VOS-1H3G-T/R	1-Channel 3G-SDI Fiber Optic Transmitter / Receiver, Stand-Alone Type, with Loopout, SFP optical module
VOS-2H3G-T/R	2-Channel 3G-SDI Fiber Optic Transmitter / Receiver, Stand-Alone Type, with Loopout
VOS-4H3G-T/R	4-Channel 3G-SDI Fiber Optic Transmitter / Receiver, Stand-Alone Type (if need the loopout, size will be 19inch 1U Rack)
VOS-8H3G-T/R	8-Channel 3G-SDI Fiber Optic Transmitter / Receiver, 19inch 1U Rack, with Loopout
VOS-16H3G-T/R	16-Channel 3G-SDI Fiber Optic Transmitter / Receiver, 19inch 1U Rack, with Loopout
VOS-12G-T/R-Mini	1-Channel 12G-SDI over Fiber Extender, Mini Type, size only 72mm x 18mm x 18mm
VOS-1H12G-T/R	1-Channel 12G-SDI over Fiber Extender, Stand-Alone Type, with Loopout SFP optical module
VOS-1DH12G-T/R	1-Channel Bi-Directional 12G-SDI over Fiber Extender, Stand-Alone Type, with Loopout, SFP optical module
VOS-2H12G-T/R	2-Channel 12G-SDI over Fiber Extender, Stand-Alone Type, with Loopout
VOS-4H12G-T/R	4-Channel 12G-SDI over Fiber Extender, Stand-Alone Type (if need the loopout, size will be 19inch 1U Rack)
VOS-8H12G-T/R	8-Channel 12G-SDI over Fiber Extender, 19inch 1U Rack, with Loopout
VOS-16H12G-T/R	16-Channel 12G-SDI over Fiber Extender, 19inch 1U Rack, with Loopout
