3G-SDI over Fiber

3G-SDI	-	-	-	-

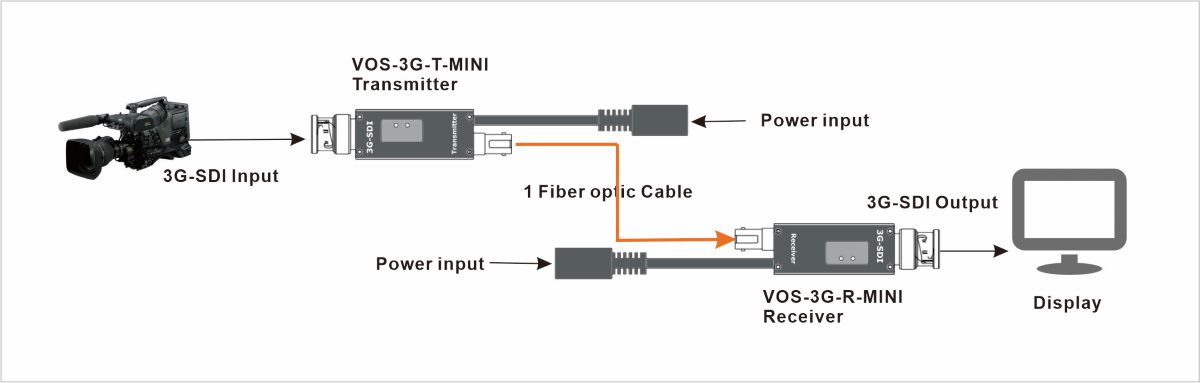

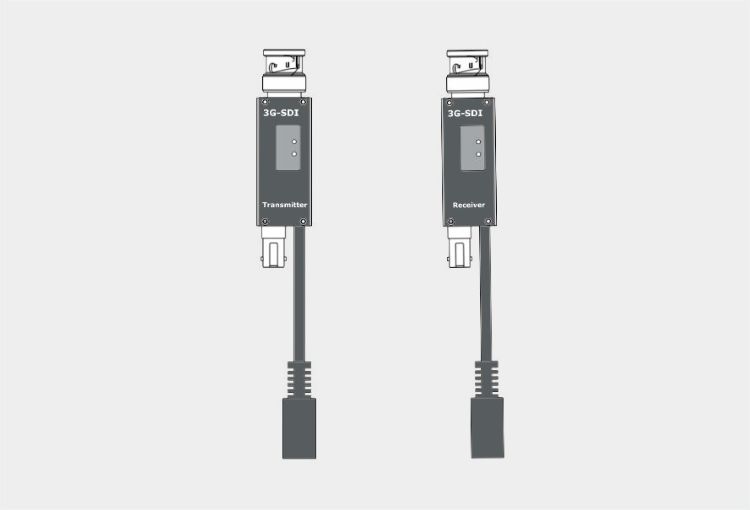

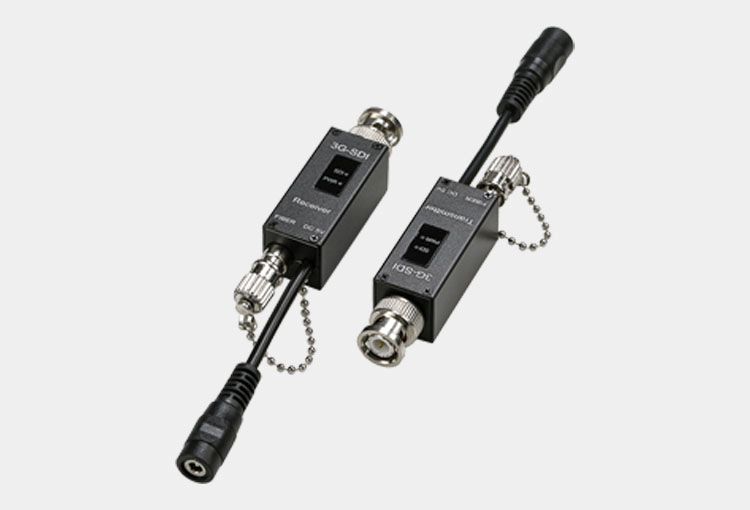

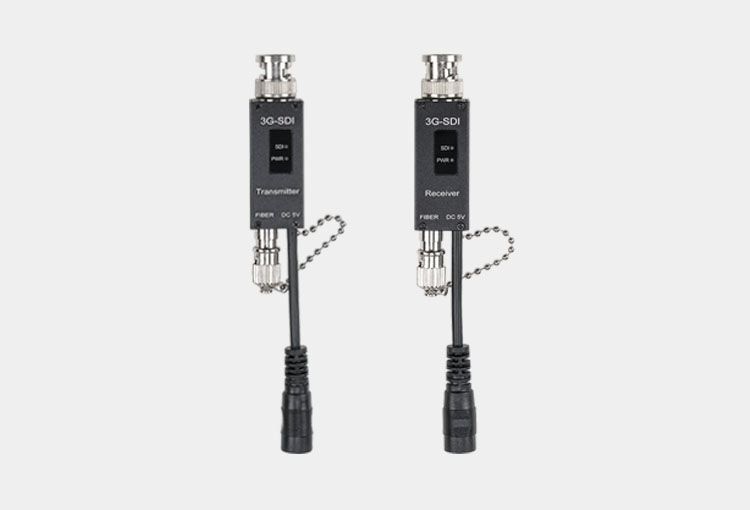

VOSCOM Mini 3G-SDI over Fiber Converter support 1-Channel uncompressed 3G-SDI over one core fiber, also support HD-SDI and SD-SDI. Integrated design combining video processing and optic-electric conversion, with high level of integration and small size, offer unmatched flexibility and cost efficiency. 3G-SDI over one single-mode fiber, the distance up to 10km.

VOSCOM 3G-SDI over Fiber converters use a compact, low-profile enclosure that works well in tight spaces around and behind equipment racks, trucks and on camera. and the converters meet all relevant SMPTE specifications, and offering electrical isolation to eliminate potential ground loop problems for a rugged, versatile solution that is suitable for a variety of applications.

• 3G-SDI
Number of Channels:	1-Channel 3G-SDI
Data Rate:	270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps  - Auto Select
Standards:	SMPTE 424M (3G-SDI), SMPTE 292M (HD-SDI), SMPTE 259M (SD-SDI)
Max Resolution:	1080p @ 60Hz
• Optical
Optical Connector:	ST Optical connector
Fiber Type:	Single-Mode, Single-Fiber
Rate:	3Gbps
Tx Output Power:	0~-3dB
Receiver Sensitivity:	-12dB
• Connectors
Video Connector:	75 Ohm BNC (Gold Center Pin)
Optical Connector:	ST Optical connector
Power Connector:	DC 3.5 x 1.35mm
• Electrical & Mechanical
Input Power Requirements:	DC 5V
Power Adapter:	AC100V~240V
Power Consumption:	<1.5W
Stand-Alone Dimensions:	72mm x 18mm x 18mm
Shipping Weight:	0.5kg (include TX & RX)
• Environmental
Operating Temperature:	-20°C ~+70°C
Storage Temperature:	-40°C~+85°C
Relative Humidity:	0%~95% (non-condensing)
MTBF:	>100,000 hours

1）We will also list devices with the same specifications, just the 3G-SDI channels are different.
2）3G-SDI can be replaced with 12G-SDI while all other specifications remain unchanged.
3）The models listed here are our most commonly used options. For other models or customization needs, please contact us directly. We welcome inquiries for customized solutions.

Part Number	Description
VOS-3G-T/R-Mini	1-Channel 3G-SDI over Fiber Converter, Mini Type, size only 72mm x 18mm x 18mm
VOS-1H3G-T/R	1-Channel 3G-SDI over Fiber Converter, Stand-Alone Type, with Loopout, SFP optical module
VOS-2H3G-T/R	2-Channel 3G-SDI over Fiber Converter, Stand-Alone Type, with Loopout
VOS-4H3G-T/R	4-Channel 3G-SDI over Fiber Converter, Stand-Alone Type (if need the loopout, size will be 19inch 1U Rack)
VOS-8H3G-T/R	8-Channel 3G-SDI over Fiber Converter, 19inch 1U Rack, with Loopout
VOS-16H3G-T/R	16-Channel 3G-SDI over Fiber Converter, 19inch 1U Rack, with Loopout
VOS-12G-T/R-Mini	1-Channel 12G-SDI over Fiber Extender, Mini Type, size only 72mm x 18mm x 18mm
VOS-1H12G-T/R	1-Channel 12G-SDI over Fiber Extender, Stand-Alone Type, with Loopout SFP optical module
VOS-1DH12G-T/R	1-Channel Bi-Directional 12G-SDI over Fiber Extender, Stand-Alone Type, with Loopout, SFP optical module
VOS-2H12G-T/R	2-Channel 12G-SDI over Fiber Extender, Stand-Alone Type, with Loopout
VOS-4H12G-T/R	4-Channel 12G-SDI over Fiber Extender, Stand-Alone Type (if need the loopout, size will be 19inch 1U Rack)
VOS-8H12G-T/R	8-Channel 12G-SDI over Fiber Extender, 19inch 1U Rack, with Loopout
VOS-16H12G-T/R	16-Channel 12G-SDI over Fiber Extender, 19inch 1U Rack, with Loopout
