| AES / EBU |
- |
- |
- |
- |
 |
|
|
|
|

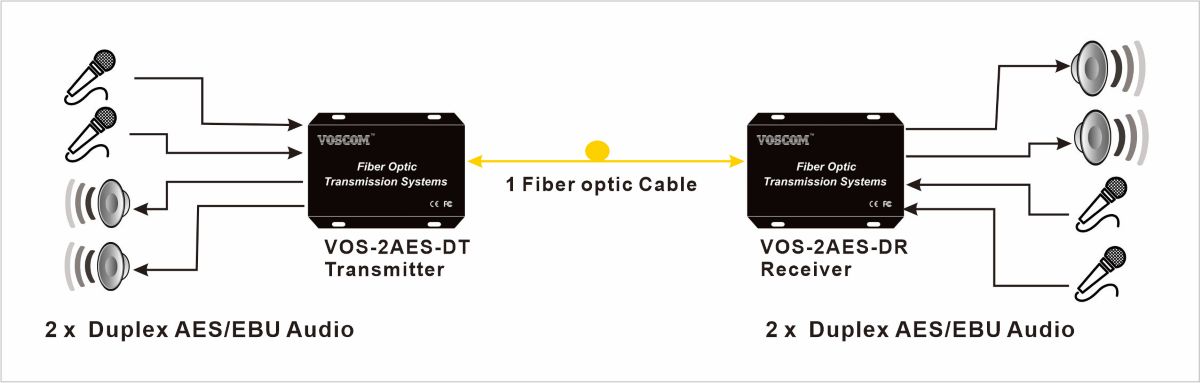

VOS-2AES-DT/R provides for the 2-Channel Duplex AES/EBU Digital Audio over Fiber with XLR Connector, AES3 standards

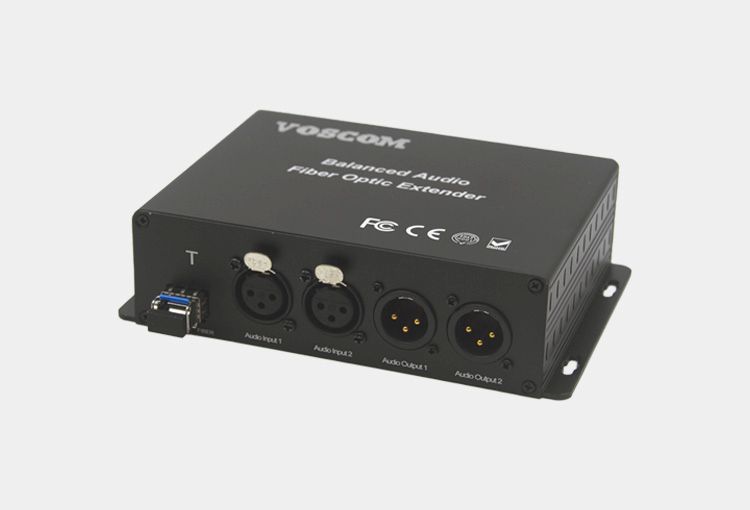

Digital Audio AES / EBU over Fiber Extender
2-Channel Duplex Digital Audio AES / EBU over Fiber Optical Extender, XLR Connector
Key Features:
AES/EBU digital Audio over one core fiber with SFP
Support AES3, IEC60958, S/PDIF, EIAJCP1201 standards
AES/EBU digital Audio with XLR Connector
Multi-mode Fiber Support for Distances up to 500m
Single-Mode Fiber Support for Distances up to 60 km
LED Status Provide Rapid Indication of Operating Parameters
No EMI or RFI and no ground loops
Stand alone or rack-mount
VOS-2AES-DT/R provides for the 2-Channel Duplex AES/EBU Digital Audio over Fiber with XLR Connector, AES3 standards
| • AES / EBU |
|
|---|---|
| Number of Channels: |
2-Channel Duplex AES/EBU |
| Standards: |
AES3,IEC60958, S/PDIF, EIAJCP1201 |
| Input Level: | 0.2 to 10V p-p, 110Ω |
| Output Level: | 2 to 7V p-p, 110Ω |
| In/output impedance: |
110Ω (Balanced) |
| Input Sample Rate : |
32 to 96 khz |
| Output Sample Rate : |
48 khz |
| Return Loss: |
>15db, 100 khz to 6 mhz |
| Output Jitter: |
<20ns |
| • Connectors |
|
| Audio Connector: |
XLR Male/Female |
| Optical Connector: |
LC Connector (SFP) |
| Power Connector: |
DC Power Connector |
| • Electrical & Mechanical |
|
| Input Power Requirements: |
DC 12V@1A |
| Power Adapter: |
AC100V~240V |
| Power Consumption: |
<3W |
| Stand-Alone Dimensions: |
167mm x 114mm x 45mm |
| Shipping Weight: |
1.5kg (include TX & RX) |
| • Environmental |
|
| Operating Temperature: | -20°C ~+75°C |
| Storage Temperature: | -40°C~+85°C |
| Relative Humidity: | 0%~95% (non-condensing) |
| MTBF: |
>100,000 hours |
1) We will also list Audio over Fiber devices with the same specifications, just the audio channels or connectors are different.
2) Audio type: Balanced or Unbalanced, line level or Mic Level are optional
3) Audio connector: Terminal Block, RCA, 3.5mm TRS, XLR, XLR-COMBO, are optional
4) The models listed here are our most commonly used options. For other models or customization needs, please contact us directly. We welcome inquiries for customized solutions.
2) Audio type: Balanced or Unbalanced, line level or Mic Level are optional
3) Audio connector: Terminal Block, RCA, 3.5mm TRS, XLR, XLR-COMBO, are optional
4) The models listed here are our most commonly used options. For other models or customization needs, please contact us directly. We welcome inquiries for customized solutions.
| Part Number | Description | Datasheet |
|---|---|---|
|
VOS-2AES-DT/R |
2-Channel Duplex Digital Audio AES / EBU over Fiber, XLR Connector |
|
|
VOS-4AES-FT/R |
4-Channel Simplex Digital Audio AES / EBU over Fiber, XLR Connector |
|
|
|
|
|
| VOS-2XLR-FT/R | 2-Channel Simplex Balanced Audio over Fiber Extender, XLR Connector, Line Level |
|
|
VOS-2XLR-DT/R |
2-Channel Duplex Balanced Audio over Fiber Extender, XLR Connector, Line Level |
|
|
VOS-4XLR-FT/R |
4-Channel Simplex Balanced Audio over Fiber Extender, XLR Connector, Line Level |
|
|
VOS-4XLR-DT/R |
4-Channel Duplex Balanced Audio over Fiber Extender, XLR Connector, Line Level |
|
|
VOS-8XLR-FT/R |
8-Channel Simplex Balanced Audio over Fiber Extender, XLR Connector, Line Level |
|
|
|
|
|
| VOS-2XLRC-FT/R | 2-Channel Simplex Balanced Audio over Fiber Extender, 48V Phantom Power, XLR-Combo Connector, Line Level or Mic Level | |
|
VOS-2XLRC-DT/R |
2-Channel Duplex Balanced Audio over Fiber Extender, 48V Phantom Power, XLR-Combo Connector, Line Level or Mic Level |
|
|
VOS-4XLRC-FT/R |
4-Channel Simplex Balanced Audio over Fiber Extender, 48V Phantom Power, XLR-Combo Connector, Line Level or Mic Level |
|
|
VOS-4XLRC-DT/R |
4-Channel Duplex Balanced Audio over Fiber Extender, 48V Phantom Power, XLR-Combo Connector, Line Level or Mic Level | |
|
VOS-8XLRC-FT/R |
8-Channel Simplex Balanced Audio over Fiber Extender, 48V Phantom Power, XLR-Combo Connector, Line Level or Mic Level |
