RCA Audio over Fiber Converter

Audio	-	-	-	-

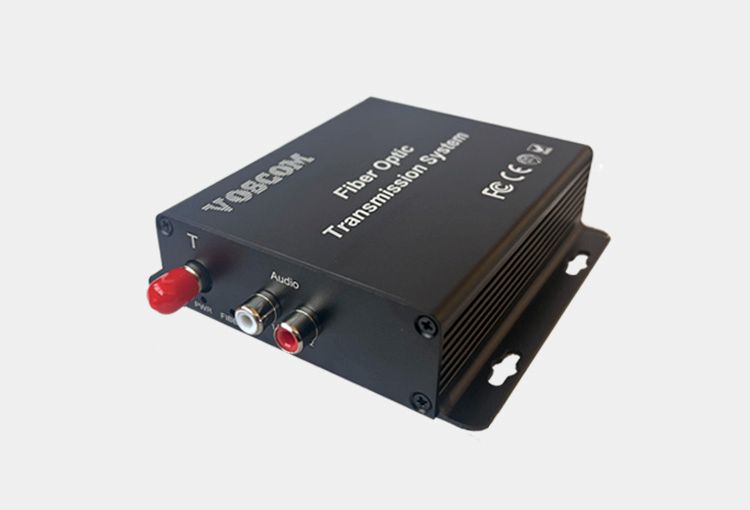

VOSCOM RCA Audio over Fiber Converter, VOS-2RCA-FT/R transmits 2-channel simplex audio over fiber. using 24-bit digital encoding, ensuring clear sound and reliable long-distance signal delivery. Perfect for broadcast studios, CCTV systems, and professional AV setups, it offers high-quality audio with strong resistance to interference.

Stand-alone or rack-mount. This audio optical converters can work as a standalone unit for simple setups or as an insert card for rack mounting. The card fits into our 14-slot, 19-inch 2U (VOS-CH02) or 4U (VOS-CH04) rack-mountable frames, making it easy to manage multiple units in control rooms. The modular design supports easy expansion and maintenance while saving space.

• Audio
Number of Channels:	2-Channel Simplex Audio (or 1-Ch Stereo)
Audio input/output Level:	+4dBu nominal
Audio Type:	Unbalanced, Line Level
Audio in/output impedance:	600Ω
Frequency Response:	20Hz ~ 20KHz
Sample Rate:	48KHz, 24K bit rate
Signal-to-Noise Ratio(SNR):	> 82 dB
Distortion:	<0.05%
• Connectors
Audio Connector:	RCA Connector
Optical Connector:	FC/PC or ST/PC Optional
Power Connector:	DC Power Connector
• Electrical & Mechanical
Input Power Requirements:	DC 5V@1A
Power Adapter:	AC100V~240V
Power Consumption:	<3W
Stand-Alone Dimensions:	104mm x 104mm x 28mm
Shipping Weight:	1.0kg (include TX & RX)
• Environmental
Operating Temperature:	-20°C ~+75°C
Storage Temperature:	-40°C~+85°C
Relative Humidity:	0%~95% (non-condensing)
MTBF:	>100,000 hours

1) We will also list devices with the same specifications, just the audio channels or connectors are different.
2) Audio type: Balanced or Unbalanced, line level or Mic Level are optional
3) Audio connector: Terminal Block, RCA, 3.5mm TRS, XLR, XLR-COMBO, are optional
4) The models listed here are our most commonly used options. For other models or customization needs, please contact us directly. We welcome inquiries for customized solutions.

Part Number	Description
VOS-2RCA-FT/R	2-Channel Simplex Audio over Fiber Converter, RCA Connector
VOS-4RCA-FT/R	4-Channel Simplex Audio over Fiber Converter, RCA Connector
VOS-8RCA-FT/R	8-Channel Simplex Audio over Fiber Converter, RCA Connector
VOS-2RCA-DT/R	2-Channel Duplex Audio over Fiber Converter, RCA Connector
VOS-4RCA-DT/R	4-Channel Duplex Audio over Fiber Converter, RCA Connector
VOS-8RCA-DT/R	8-Channel Duplex Audio over Fiber Converter, RCA Connector
