Balanced Audio to Fiber Converter

Balanced Audio	-	-	-	-

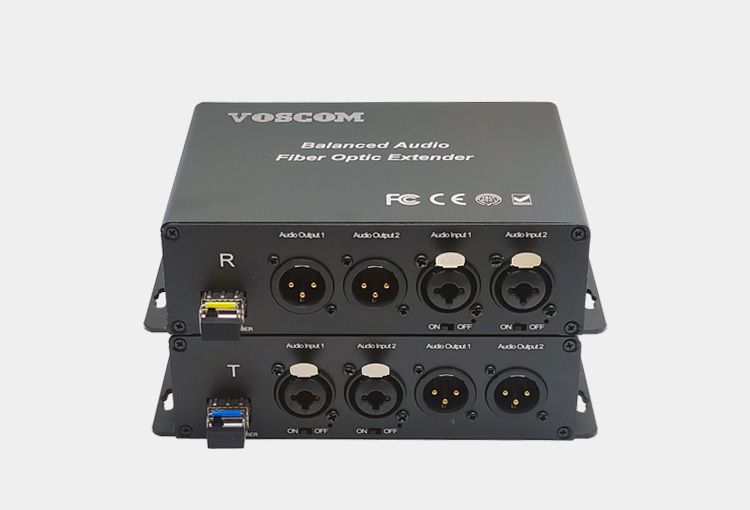

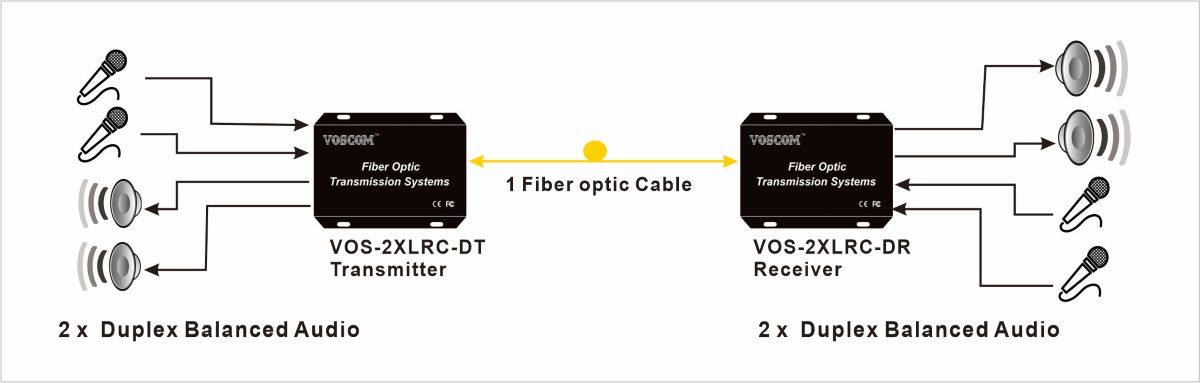

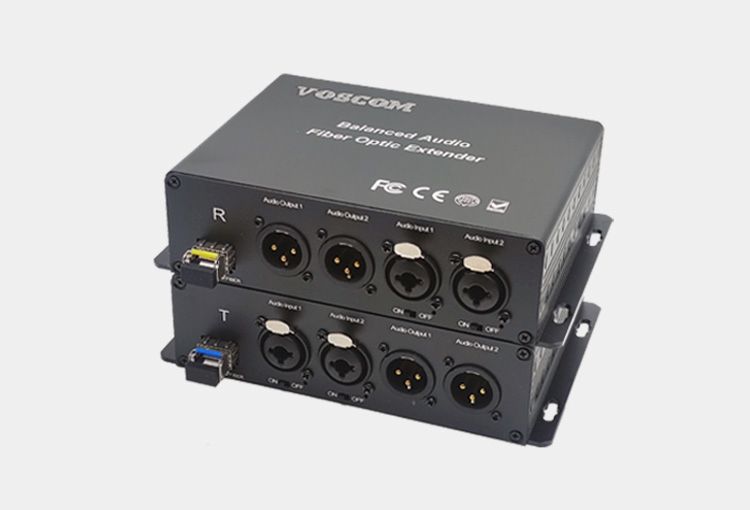

VOSCOM Balanced Audio to Fiber Converter, VOS-2XLRC-DT/R provides for the 2-Channel Duplex Balanced Audio over fiber, Mic Lelvel or Line level with XLR-Combo Connector (supports XLR male plugs or 6.35mm TRS plugs), and with 48V Phantom power, switch: ON=Mic level(48V), OFF=Line level. Ideal for Broadcast /Studio, CCTV audio and Professional AV applications.

• Audio
Number of Channels:	2-Channel Duplex Audio
Audio input/output Level:	+4dBu nominal
Audio Type:	Balanced, Mic or Line Level
Audio in/output impedance:	600Ω
Frequency Response:	20Hz ~ 20KHz
Sample Rate:	192KHz
Signal-to-Noise Ratio(SNR):	> 90 dB
Distortion:	<0.05%

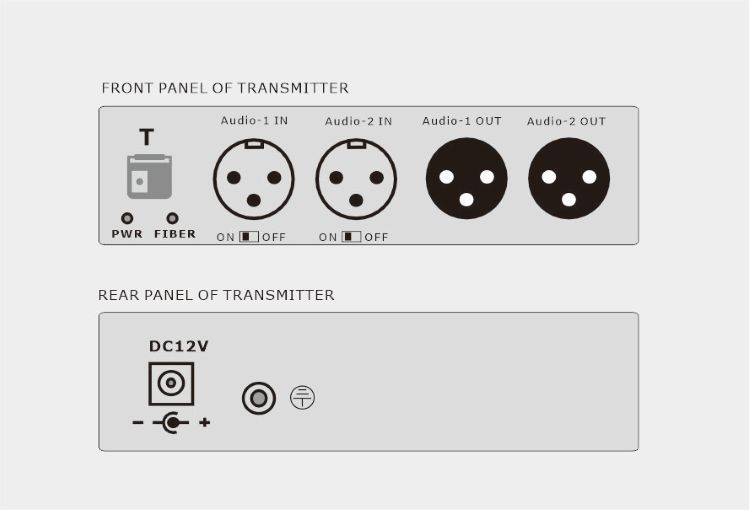

• Connectors
Audio Connector:	XLR Male/Female, XLR-Combo
Optical Connector:	LC Connector (SFP)
Power Connector:	DC Power Connector
• Electrical & Mechanical
Input Power Requirements:	DC 12V@1A
Power Adapter:	AC100V~240V
Power Consumption:	<3W
Stand-Alone Dimensions:	167mm x 114mm x 45mm
Shipping Weight:	1.5kg (include TX & RX)
• Environmental
Operating Temperature:	-20°C ~+75°C
Storage Temperature:	-40°C~+85°C
Relative Humidity:	0%~95% (non-condensing)
MTBF:	>100,000 hours

1) We will also list devices with the same specifications, just the audio channels or connectors are different.
2) Audio type: Balanced or Unbalanced, line level or Mic Level are optional
3) Audio connector: Terminal Block, RCA, 3.5mm TRS, XLR, XLR-COMBO, are optional
4) The models listed here are our most commonly used options. For other models or customization needs, please contact us directly. We welcome inquiries for customized solutions.

Part Number	Description
VOS-2XLRC-FT/R	2-Channel Simplex Balanced Audio over Fiber Extender, 48V Phantom Power, XLR-Combo Connector, Line Level or Mic Level
VOS-2XLRC-DT/R	2-Channel Duplex Balanced Audio over Fiber Extender, 48V Phantom Power, XLR-Combo Connector, Line Level or Mic Level
VOS-4XLRC-FT/R	4-Channel Simplex Balanced Audio over Fiber Extender, 48V Phantom Power, XLR-Combo Connector, Line Level or Mic Level
VOS-4XLRC-DT/R	4-Channel Duplex Balanced Audio over Fiber Extender, 48V Phantom Power, XLR-Combo Connector, Line Level or Mic Level
VOS-8XLRC-FT/R	8-Channel Simplex Balanced Audio over Fiber Extender, 48V Phantom Power, XLR-Combo Connector, Line Level or Mic Level
VOS-2XLR-FT/R	2-Channel Simplex Balanced Audio over Fiber Extender, XLR Connector, Line Level
VOS-2XLR-DT/R	2-Channel Duplex Balanced Audio over Fiber Extender, XLR Connector, Line Level
VOS-4XLR-FT/R	4-Channel Simplex Balanced Audio over Fiber Extender, XLR Connector, Line Level
VOS-4XLR-DT/R	4-Channel Duplex Balanced Audio over Fiber Extender, XLR Connector, Line Level
VOS-8XLR-FT/R	8-Channel Simplex Balanced Audio over Fiber Extender, XLR Connector, Line Level
