Video with BNC over Fiber Extender

Video	-	-	-	-

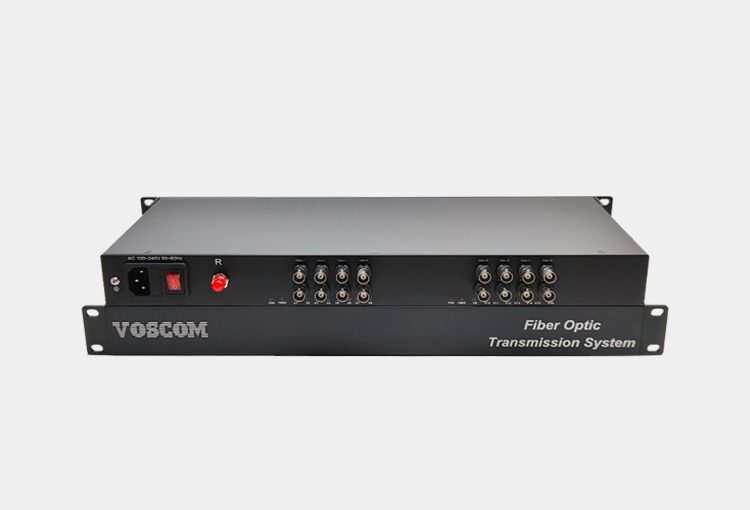

VOSCOM Video over Fiber Converter, VOS-16000FT/R can transmission 16-Channel composite video over fiber, support AHD / HD-TVI / HD-CVI & analog video format. for fixed camera, no audio,no data.

Single-Mode or Multi-Mode,VOS-16000FT/R can support FC /PC or ST/PC Optical connector, can be used in Daisy-Chain system (Need to customize). The Transmission distance range according to the Optical Budget. Manufacturer's standard is: Single-mode 20km or Multi-mode 500m.

• Video
Number of Channels:	16-Channel Video
Input/output impedance:	BNC 75Ω
Input/output Compatibility:	PAL, NTSC, SECAM
Input/output voltage:	1.0 Volt p-p
Bandwidth:	6.5MHZ
Bit Resolution:	8-Bit Digital Transmission
Differential Gain:	< 1.5%
Differential Phase:	< 1.5°
Tilt:	< 5%
Signal-to-Noise Ratio(SNR):	> 67 dB
• Connectors
Video Connector:	75Ω BNC (Gold Center Pin)
Optical Connector:	FC/PC or ST/PC Optional
Power Connector:	DC Power Connector
• Electrical & Mechanical
Input Power Requirements:	DC 5V@2A
Power Adapter:	AC100V~240V
Power Consumption:	<3W
Stand-Alone Dimensions:	445mm x 220mm x 44.5mm
Shipping Weight:	6.0kg (include TX & RX)
• Environmental
Operating Temperature:	-20°C ~+75°C
Storage Temperature:	-40°C~+85°C
Relative Humidity:	0%~95% (non-condensing)
MTBF:	>100,000 hours

1) We will also list devices with the same specifications, just the video channels are different.
2) The models listed here are our most commonly used options. For other models or customization needs, please contact us directly. We welcome inquiries for customized solutions.

Part Number	Description
VOS-1000FT/R	1-Channel Video over Fiber Converter
VOS-2000FT/R	2-Channel Video over Fiber Converter
VOS-20101FDET/R	2-Channel Video + 1 Duplex + Ethernet
VOS-4000FT/R	4-Channel Video over Fiber Converter
VOS-4020FDT/R	4-Channel Video + 2 Duplex Data over Fiber Converter
VOS-40101FDET/R	4-Channel Video + 1 Duplex Data + Ethernet
VOS-8000FT/R	8-Channel Video over Fiber Converter
VOS-16000FT/R	16-Channel Video over Fiber Converter
