Video Fiber Optic Converter

Video	Data	Ethernet	-	-

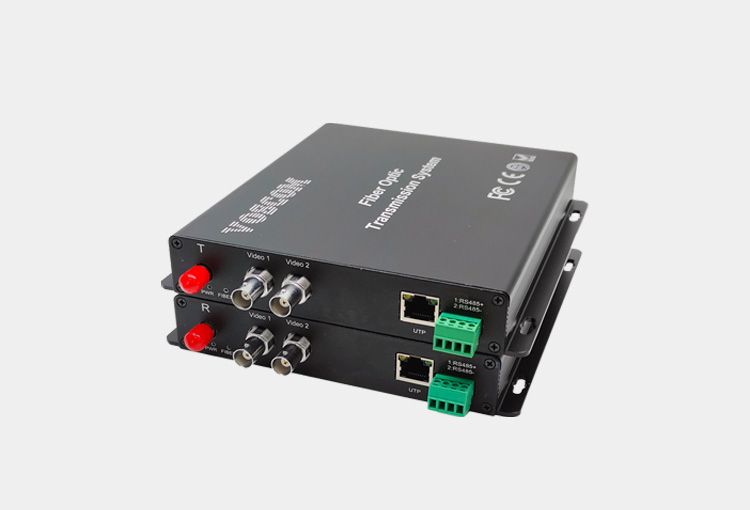

VOSCOM Video Fiber Optic Converter, VOS-20101FDET/R can transmission 2-Channel composite video over fiber, support AHD / HD-TVI / HD-CVI & analog video format. can transmission 2-Channel digital composite video, 1 duplex data, and 10M/100M Ethernet, Data support RS485, RS232, RS422 protocols. Ideal for Broadcast /Studio ,CCTV and Professional AV applications.

Stand-alone or rack-mount. All units of VOS-20101FDET/R come in an insert card version. The cards can be inserted into our 16-slot, 19inch 4U rack-mountable card cage (VOS-CH04).

Single-Mode or Multi-Mode,VOS-20101FDET/R can support FC /PC or ST/PC Optical connector, can be used in Daisy-Chain system (Need to customize). The Transmission distance range according to the Optical Budget. Manufacturer's standard is: Single-mode 20km or Multi-mode 500m.

• Video
Number of Channels:	2-Channel Video
Input/output impedance:	BNC 75Ω
Input/output Compatibility:	PAL, NTSC, SECAM
Input/output voltage:	1.0 Volt p-p
Bandwidth:	6.5MHZ
Bit Resolution:	8-Bit Digital Transmission
Differential Gain:	< 1.5%
Differential Phase:	< 1.5°
Tilt:	< 5%
Signal-to-Noise Ratio(SNR):	> 67 dB
• Data
Data Formats:	RS485, RS232 or RS422 Data
Data Rate:	DC to 1Mbps
Bit Error Rate:	10E-9
• Ethernet
Standard:	Ethernet IEEE 802.3
Data Rate:	10/100 Mbps
Connector:	RJ-45,Auto MDI/MDI-X
• Connectors
Video Connector:	75Ω BNC (Gold Center Pin)
Optical Connector:	FC/PC or ST/PC Optional
Power Connector:	DC Power Connector
• Electrical & Mechanical
Input Power Requirements:	DC 5V@2A
Power Adapter:	AC100V~240V
Power Consumption:	<3W
Stand-Alone Dimensions:	172mm x 167mm x 28mm
Shipping Weight:	2.0kg (include TX & RX)
• Environmental
Operating Temperature:	-20°C ~+75°C
Storage Temperature:	-40°C~+85°C
Relative Humidity:	0%~95% (non-condensing)
MTBF:	>100,000 hours

1) We will also list devices with the same specifications, just the video channels are different.
2) The models listed here are our most commonly used options. For other models or customization needs, please contact us directly. We welcome inquiries for customized solutions.

Part Number	Description
VOS-1000FT/R	1-Channel Video over Fiber Converter
VOS-2000FT/R	2-Channel Video over Fiber Converter
VOS-20101FDET/R	2-Channel Video + 1 Duplex + Ethernet
VOS-4000FT/R	4-Channel Video over Fiber Converter
VOS-4020FDT/R	4-Channel Video + 2 Duplex Data over Fiber Converter
VOS-40101FDET/R	4-Channel Video + 1 Duplex Data + Ethernet
VOS-8000FT/R	8-Channel Video over Fiber Converter
VOS-16000FT/R	16-Channel Video over Fiber Converter
