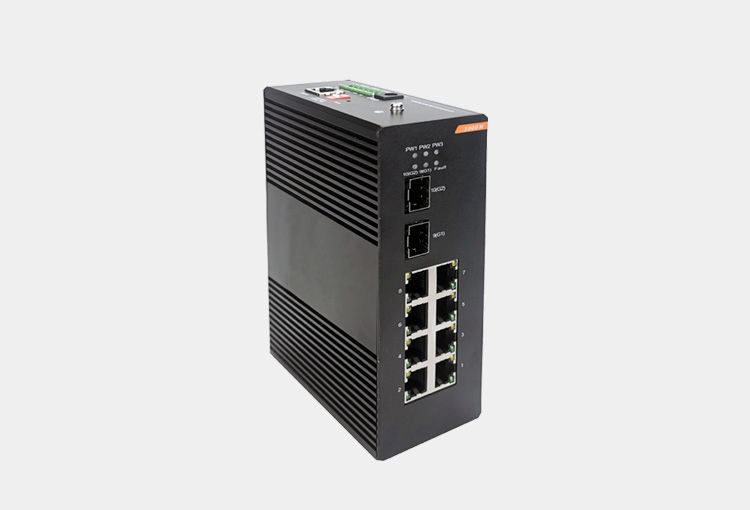

VOSCOM VOS-IRP-8GE2GF-SFP Unmanaged Industrial PoE
Ethernet Switch provide 8 * 10/100/1000Base-T PoE Ethernet
ports and 2 Gigabit SFP ports for long distance connectivity.
The PoE Ethernet ports provide up to 15.4W/port with a total
power budget of 123.2W (IEEE802.3af ), or up to 30W/port
with a total power budget of 240W (IEEE802.3at), the PoE
power budget depends on power input.
Low power consumption design; DIN-Rail corrugated metal
casing, IP40 protection grade; wide operating temperature
range and port surge protection design, can be deployed in
factory automation, transportation, Oil & Gas and many
other industrial applications.
Unmanaged Industrial PoE Ethernet Switch
PoE Ethernet Switch, 8 x 1000Base-T PoE Ethernet ports and 2 Gigabit SFP ports
Key Features:
8 x 10/100/1000BASE-T PoE Ethernet port and 2 x Gigabit SFP port
Support IEEE802.3af 15.4W per port or IEEE802.3at 30W per port
IEEE802.3 / 802.3u / 802.3x / IEEE802.3ab / IEEE802.3z, store and forward
MDI/MDI-X Auto-Crossover supported
Full/half-duplex auto-negotiation
Power with overload protection and reverse polarity protection
DIN-Rail corrugated metal casing, IP40 protection grade
Low power consumption design without fan
-40ºC to 85ºC operating temperature
please check the datasheet for the details
please check the datasheet for the details
please check the datasheet for the details
