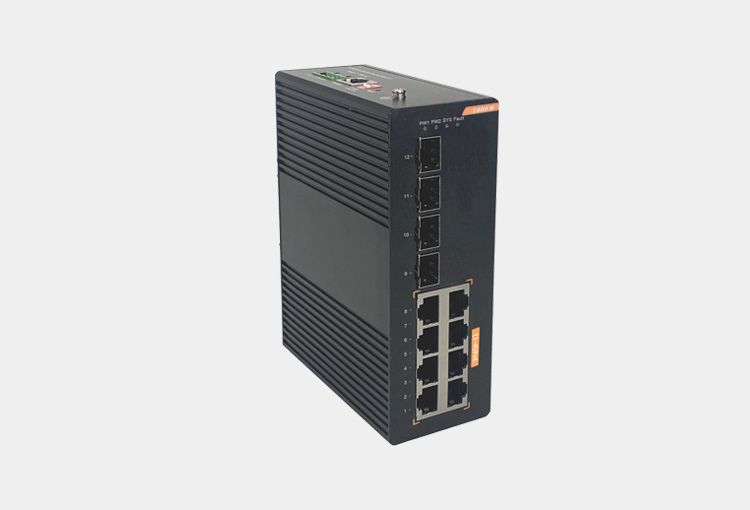

VOSCOM VOS-MIRP-8GE4GF-SFP Managed Industrial PoE
Ethernet Switch provide 8 * 10/100/1000Base-T PoE Ethernet
ports and 4 Gigabit SFP ports for long distance connectivity.
The PoE Ethernet ports provide up to 15.4W/port with a total
power budget of 123.2W (IEEE802.3af ), or up to 30W/port
with a total power budget of 240W (IEEE802.3at), the PoE
power budget depends on power input.
This Managed Ethernet switch support redundant Ring protocol
(recovery time 20ms), complete security and QoS policies;
Support VLAN division, port mirroring, and port rate limiting;
Support broadcast storm protection, flow control, and centralized
management and configuration by WEB,CLI,SNMP.DIN-Rail
corrugated metal casing, IP40 protection grade; wide operating
temperature range and port surge protection.
Managed PoE Ethernet Switch, Redundant Ring protocol
Industrial Managed Gigabit PoE Ethernet Switch, 8 x 1000BASE-T PoE and 4 x Gigabit SFP
Key Features:
8 x 10/100/1000BASE-T PoE Ethernet port and 4 x Gigabit SFP port
Support IEEE802.3af 15.4W per port or IEEE802.3at 30W per port
Support redundant Ring protocol (recovery time≤20ms)
Supports IGMP v1/v2/v3 Snooping, up to 256 groups
Support 802.1Q VLAN, Port-based VLAN, QinQ and Broadcast storm protection.
SNMP v1/v2c/v3, Web GUI, CLI; Console port, Telnet
Power with overload protection and reverse polarity protection
DIN-Rail corrugated metal casing, IP40 protection grade
-40ºC to 85ºC operating temperature
please check the datasheet for the details
please check the datasheet for the details
please check the datasheet for the details
