RS422 Data over Fiber Transceiver

RS422 Data	-	-	-	-

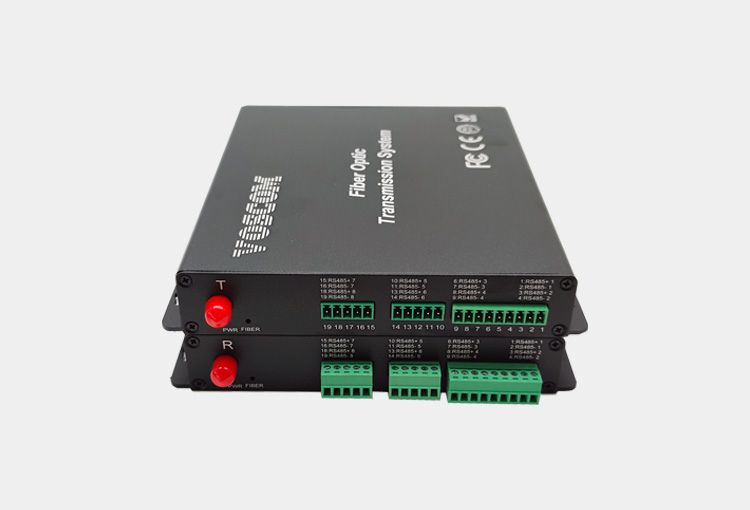

VOSCOM Serial Data over Fiber Converter VOS-4FOM-D422T/R provides for the digital transmission of 4-Channel duplex Rs422 serial data signal over one fiber. Applications for PTZ Control for CCTV Surveillance Systems, Access Control System, Industirlia control, Data Control for Manufacturing / Assembly Platforms, ITS...etc.

Stand-alone or rack-mount. All units of VOS-4FOM-D422T/R come in an insert card version. The cards can be inserted into our our 16-slot,4U rack-mountable card cage (VOS-CH04).

Single-Mode or Multi-Mode, VOS-4FOM-D422T/R can support FC /PC or ST/PC Optical connector, can be used in Daisy-Chain system (Need to customize). The Transmission distance range according to the Optical Budget. Manufacturer's standard is: Single-mode 20km or Multi-mode 500m.

• Serial Data
Number of Channels:	4-Channel Duplex RS422 Data
Connector:	Terminal Block
Data Formats:	Rs422
Data Rate:	DC to 1Mbps
Bit Error Rate:	< 10E-9
• Connectors
Data Connector:	Terminal Block
Optical Connector:	FC/PC or ST/PC Optional
Power Connector:	DC Power Connector
• Electrical & Mechanical
Input Power Requirements:	DC 5V@2A
Power Adapter:	AC100V~240V
Power Consumption:	<5W
Stand-Alone Dimensions:	192mm x 167mm x 28mm
Shipping Weight:	2.0kg (include TX & RX)
• Environmental
Operating Temperature:	-20°C ~+75°C
Storage Temperature:	-40°C~+85°C
Relative Humidity:	0%~95% (non-condensing)
MTBF:	>100,000 hours

1) We will also list devices with the same specifications, just the data channels are different.
2) The models listed here are our most commonly used options. For other models or customization needs, please contact us directly. We welcome inquiries for customized solutions.

Part Number	Description
VOS-1FOM-D485T/R	1-Channel Duplex RS485 Data over Fiber Converter
VOS-1FOM-D232T/R	1-Channel Duplex RS232 Data over Fiber Converter
VOS-1FOM-D422T/R	1-Channel Duplex RS422 Data over Fiber Converter
VOS-2FOM-D485T/R	2-Channel Duplex RS485 Data over Fiber Converter
VOS-2FOM-D232T/R	2-Channel Duplex RS232 Data over Fiber Converter
VOS-2FOM-D422T/R	2-Channel Duplex RS422 Data over Fiber Converter
VOS-4FOM-D485T/R	4-Channel Duplex RS485 Data over Fiber Converter
VOS-4FOM-D232T/R	4-Channel Duplex RS232 Data over Fiber Converter
VOS-4FOM-D422T/R	4-Channel Duplex RS422 Data over Fiber Converter
VOS-8FOM-D485T/R	8-Channel Duplex RS485 Data over Fiber Converter
VOS-8FOM-D232T/R	8-Channel Duplex RS232 Data over Fiber Converter
