BNC to Fiber Converter - BNC to Fiber Optic Converter

Home > Fiber Optic Transmission Systems > Fiber Optic Converter > VOS-1210FFDT/R

1-Channel Video + 2 Simplex Audio + 1 Duplex Data

View more full-size: IMG1 - IMG2 - IMG3

• Uncompressed Composite Video
• 24-Bit Digitally Encoded Analog Audio
• Data support RS485, RS232 or RS422
• Support Multi-mode Fiber up to 2km
• Support Single-mode Fiber up to 100km
• Stand-alone or Rack-mount

Video	Audio	Data	PDF Datasheets	Installation Manual
			VOS-1210FFDT/R Datasheet	VOS-1210FFDT/R Manual

System Design

Video & Audio & Data Fiber Optic Converter VOS-1210FFDT/R provides for the digital transmission of 1-Channel Composite Video and 2 simplex audio and duplex data. Data support RS485, RS232, RS422 protocols. Ideal for Broadcast /Studio, CCTV audio and Professional AV applications.

Stand-alone or rack-mount. All BNC to Fiber Converter units of VOS-1210FFDT/R come in an insert card version.The cards can be inserted into our 14-slot, 19inch 4U or 6U rack-mountable card cage (VOS-CH04 or VOS-CH06).

Single-Mode or Multi-Mode, VOS-1210FFDT/R can support FC /PC or ST/PC Optical connector, can be used in Daisy-Chain system (Need to customize). The Transmission distance range according to the Optical Budget. Manufacturer's standard is: Single-mode 20km or Multi-mode 2km.

Features

• Support Point-to-Point or Daisy-Chain connection
• Uncompressed Digital Composite Video over one fiber
• 24-Bit Digitally Encoded Analog Audio over one Fiber
• Data support RS485(2-wire or 4-wire),RS232,RS422, Contact Closure
• Compatible with all PAL, NTSC,SECAM Video Systems
• Multimode Fiber Support for Distances up to 2 km
• Single-Mode Fiber Support for Distances up to 100 km
• LED Status Provide Rapid Indication of Operating Parameters
• No EMI or RFI and no ground loops
• Stand alone or rack-mount
• Produce according to customer's specifications,providing OEM

Specifications

• Video
Number of Channels:	1 Channel Video
Video input/output impedance:	BNC 75 Ω
Video input/output Compatibility:	PAL, NTSC,SECAM
Video input/output voltage:	1.0 Volt p-p
Bandwidth:	6.5MHZ
Bit Resolution:	8-Bit Digital Transmission
Differential Gain:	< 1.5%
Differential Phase:	< 1.5 °
Tilt:	< 5%
Signal-to-Noise Ratio(SNR):	> 67 dB
• Audio
Number of Channels:	2 Channels Simplex Audio
Audio input/output Level:	6 dBm
Audio input/output impedance:	600 Ω Unbalanced
Bandwidth:	20Hz ~ 20KHz
Bit Resolution:	24-Bit
Signal-to-Noise Ratio(SNR):	> 80 dB
• Data
Data Formats:	RS485(2-wire or 4-wire),RS232,RS422,Contact Closure
Data Rate:	DC to 115.2Kbps
Bit Error Rate:	10E-9
• Connectors
Video:	75 Ohm BNC (Gold Center Pin)
Audio:	Terminal Block
Data:	Terminal Block
Optical:	FC/PC or ST/PC Optional
Stand-Alone Power:	Screw terminal block
Rack Power:	AC line cord
• Electrical & Mechanical
Input Power Requirements:	DC 5V@2A
Power Adapter:	AC 100V~240V
Power Consumption:	< 3W
Stand-Alone Dimensions:	142mm × 107mm × 25mm
Card for 4U Rack Dimensions:	145mm × 170mm × 20mm
Shipping Weight:	1.8kg (include Transmitter & Receiver)
• Environmental
Operating Temperature:	-40°C ~ +75°C
Storage Temperature:	-40°C ~ +85°C
Relative Humidity:	0% ~ 95% (non-condensing)
MTBF:	>100,000 hours

Ordering Information & Optical Specifications

Model Number		Fiber Mode	Wavelengths	Optical Power Budget	Maximum Transmission Distance
Transmitter	Receiver	Fiber Mode	Wavelengths	Optical Power Budget	Maximum Transmission Distance
VOS-1210FFDMT	VOS-1210FFDMR	MM	1310nm/1550nm	16dB	2km
VOS-1210FFDST	VOS-1210FFDSR	SM	1310nm/1550nm	12dB	20km
VOS-1210FFDST-4	VOS-1210FFDSR-4	SM	1310nm/1550nm	18dB	40km
VOS-1210FFDST-6	VOS-1210FFDSR-6	SM	1310nm/1550nm	25dB	60km
Note: • The Optical Power Budget data fit Mulit-mode(62.5/125 μm),Single-Mode(9/125 μm). • When using 50/125 μm multimode fiber, subtract 3 dB from the optical power budget. • Optical transmission distance is limited to optical loss of the fiber and any additional loss introduced by connectors, splices and patch panels. • Maximum transmission distance is also limited by fiber bandwidth. • Power adapter is manufactured by third party and is supplied with fitted screw-terminal output cables.Power adapter included (for standalone) US, European, UK or Australian power plug. • Please feel free to consult factory for any special requirement and customization.

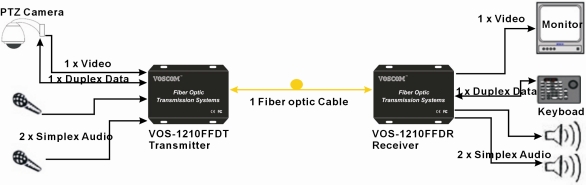

Typical Configuration

Note: Due to continuous improvement, all fiber optic transmission systems and BNC to Fiber Optic Converter product specifications are subject to change without further notice.
