1-Channel Video over Fiber Transmitter & Receiver
Video Audio Data PDF Datasheets Installation Manual
video over fiber -- -- video over fiber opticsVOS-1000FT/R Datasheet video over fiber opticsVOS-1000FT/R Manual

video over fiber System Design

Fiber Optic Video Transmitter VOS-1000FT/R can transmission 1-Channel digital composite video over Fiber for fixed camera, no audio, no data.

Stand-alone or rack-mount
. All units of VOS-1000FT/R come in an insert card version. The cards can be inserted into our 14-slot, 19inch 2U, 4U or 6U rack-mountable card cage (VOS-CH02, VOS-CH04 or VOS-CH06).

Single-Mode or Multi-Mode, VOS-1000FT/R can support FC/PC or ST/PC Optical connector, can be used in Daisy-Chain system (Need to customize). The Transmission distance range according to the Optical Budget. Manufacturer's standard is: Single-mode 20km or Multi-mode 2km.

video over fiber optics Features

• Support Point-to-Point or Daisy-Chain connection
• Uncompressed Digital Composite Video over one fiber
• Compatible with all PAL, NTSC,SECAM Video Systems
• Multimode Fiber Support for Distances up to 2 km
• Single-Mode Fiber Support for Distances up to 100 km
• LED Status Provide Rapid Indication of Operating Parameters
• No EMI or RFI and no ground loops
• Stand alone or rack-mount
• Produce according to customer's specifications,providing OEM

fiber optic transmitter Specifications

• Video
Number of Channels: 1 Channel Video
Video input/output impedance: BNC 75 Ω
Video input/output Compatibility: PAL, NTSC,SECAM
Video input/output voltage: 1.0 Volt p-p
Bandwidth: 6.5MHZ
Bit Resolution: 8-Bit Digital Transmission
Differential Gain: < 1.5%
Differential Phase: < 1.5 °
Tilt: < 5%
Signal-to-Noise Ratio(SNR): > 67 dB

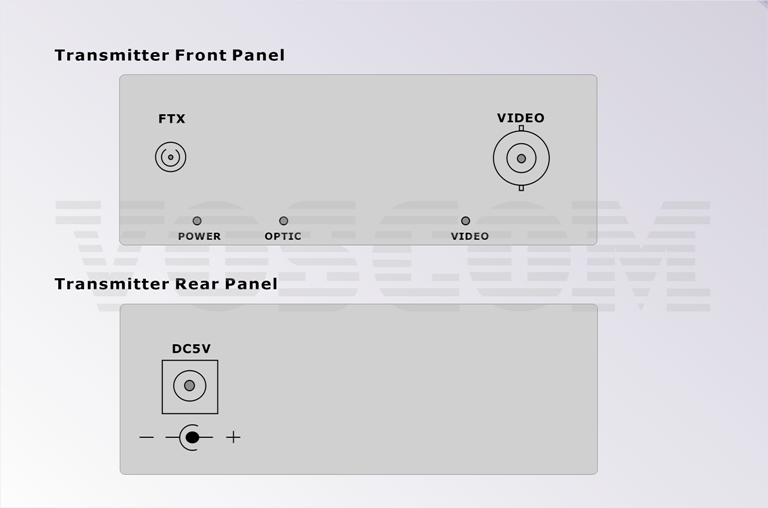

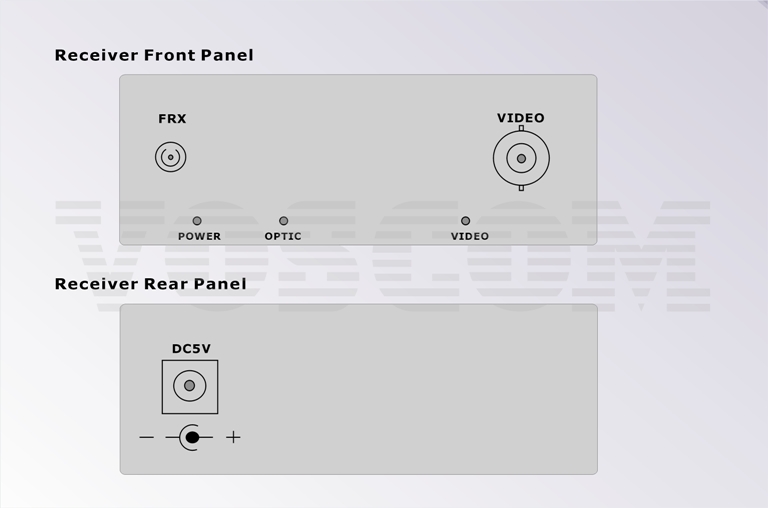

• Connectors
Video: 75 Ohm BNC (Gold Center Pin)
Optical: FC/PC or ST/PC Optional
Stand-Alone Power: Screw terminal block
Rack Power: AC line cord
• Electrical & Mechanical
Input Power Requirements: DC 5V@2A
Power Adapter: AC 100V~240V
Power Consumption: < 3W
Stand-Alone Dimensions: 95mm × 70mm × 25mm
Card for 2U Rack Dimensions: 95mm × 70mm × 25mm
Card for 4U Rack Dimensions: 145mm × 170mm × 20mm
Shipping Weight: 1.2kg (include Transmitter & Receiver)
• Environmental
Operating Temperature: -40°C ~ +75°C
Storage Temperature: -40°C ~ +85°C
Relative Humidity: 0% ~ 95% (non-condensing)
MTBF: >100,000 hours

video over fiber Ordering Information & Optical Specifications

Model Number Fiber Mode Wavelengths Optical Power Budget Maximum Transmission Distance
Transmitter Receiver
VOS-1000FMT VOS-1000FMR Multi-Mode 1310nm 16dB 2km
VOS-1000FST VOS-1000FSR Single-Mode 1310nm 12dB 20km
VOS-1000FST-4 VOS-1000FSR-4 Single-Mode 1310nm 18dB 40km
VOS-1000FST-6 VOS-1000FSR-6 Single-Mode 1550nm 25dB 60km

Note:
• The Optical Power Budget data fit Mulit-mode(62.5/125 μm),Single-Mode(9/125 μm).
• When using 50/125 μm multimode fiber, subtract 3 dB from the optical power budget.
• Optical transmission distance is limited to optical loss of the fiber and any additional loss introduced by connectors, splices and patch panels.
• Maximum transmission distance is also limited by fiber bandwidth.
• Power adapter is manufactured by third party and is supplied with fitted screw-terminal output cables.Power adapter included (for standalone) US, European, UK or Australian power plug.
• Please feel free to consult factory for any special requirement and customization.

video over fiber optics Typical Configuration


video over fiber

Note: Due to continuous improvement, all fiber optic transmission systems and video over fiber product specifications are subject to change without further notice.
